Description
Brand - DODGE
Item Number - 136928 DODGE - LF-SCEZ-100-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - LF-SCEZ-100-SHCR
Weight (lbs) - 0.8

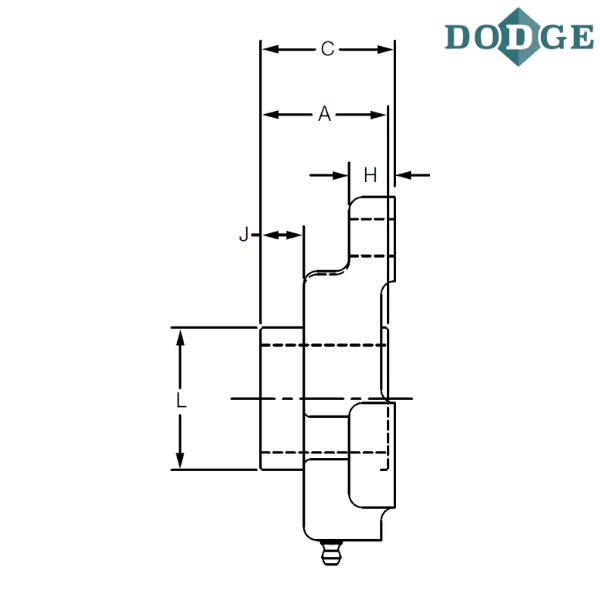

Length Through Bore (A) inch - 1.06
Width (B) inch - 3.75
Thickness (C) inch - 1.34
Bolt Center to Center Length (D) inch - 3
G (inch) - 0.34
H (inch) - 0.5
J (inch) - 0.37
L (inch) - 1.32
M (inch) - 1.88
N (inch) - 1.67
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LF - 3 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
