136923 DODGE - FB-SCEZ-104S-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136923 DODGE - FB-SCEZ-104S-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Flange Bracket Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - FB-SCEZ-104S-SHCR
Weight (lbs) - 1.96

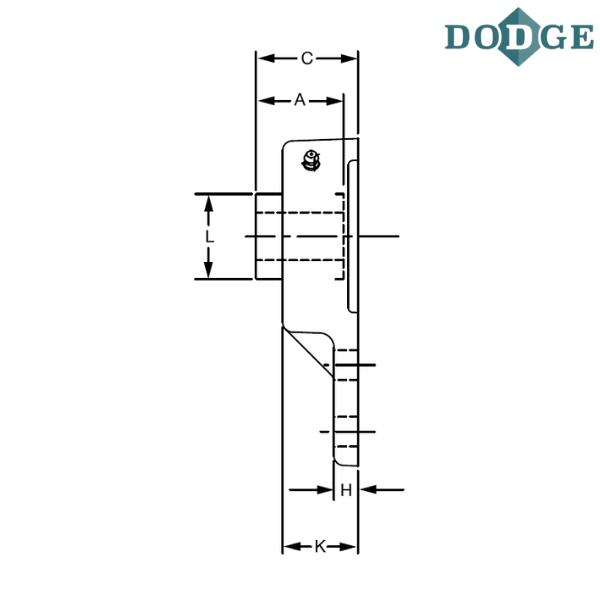

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 5.31
Thickness (C) inch - 1.59
Bolt Center to Center Length (D) inch - 1.88
E (inch) - 2.06
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.25
H (inch) - 0.38
I (inch) - 3.75
Overall Width (J) inch - 3.13
K (inch) - 1.14
L (inch) - 1.57
M (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FB - Flanged bracket
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
S - Next smaller ring size
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
