136912 DODGE - TB-SCEZ-012-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136912 DODGE - TB-SCEZ-012-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ TB SHCR Normal Duty Stainless Steel Tapped Base Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - TB-SCEZ-012-SHCR
Weight (lbs) - 1.27

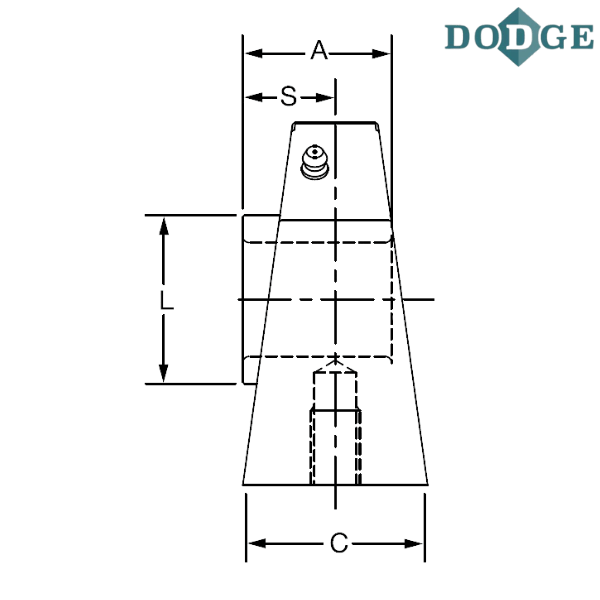

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 2.77
Width (C) inch - 1.36
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.5
L (inch) - 1.12
Base to Center Height (M) inch - 1.31
N (inch) - 0.45
R (inch) - 0.375-16
S (inch) - 0.73
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
