136875 DODGE - LF-SCEZ-30M-SHSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136875 DODGE - LF-SCEZ-30M-SHSS
Category - Ultra Kleen Mounted Bearings (SCEZ SHSS Normal Duty Stainless Steel Housed 3-Bolt Flange Bearing)
Series - 206
Shaft Size (mm) - 30
Description - LF-SCEZ-30M-SHSS
Weight (kg) - 0.54

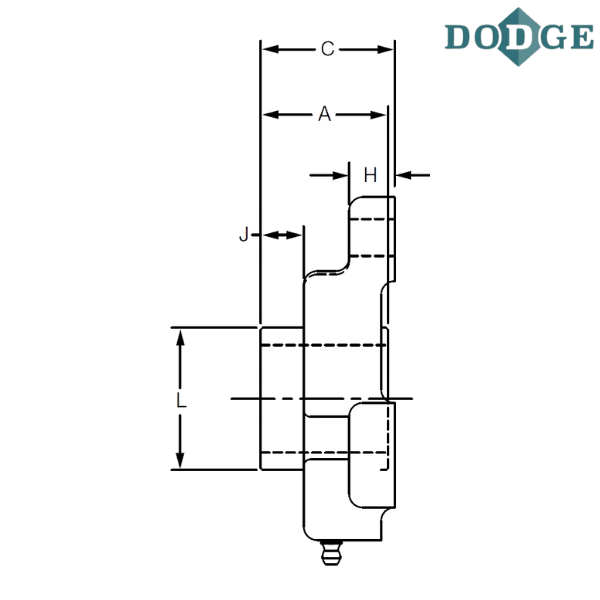

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 112.8
Thickness (C) mm - 40.5
Bolt Center to Center Length (D) mm - 90.4
G (mm) - 10.4
H (mm) - 15.5
J (mm) - 13
L (mm) - 39.9
Overall Width (M) mm - 56.4
N (mm) - 50.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LF - 3 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
SS - Stainless Steel Insert

** Images are for representation purposes only
