136861 DODGE - F2B-SCEZ-20M-SHSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136861 DODGE - F2B-SCEZ-20M-SHSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-SCEZ-20M-SHSS
Weight (kg) - 0.42

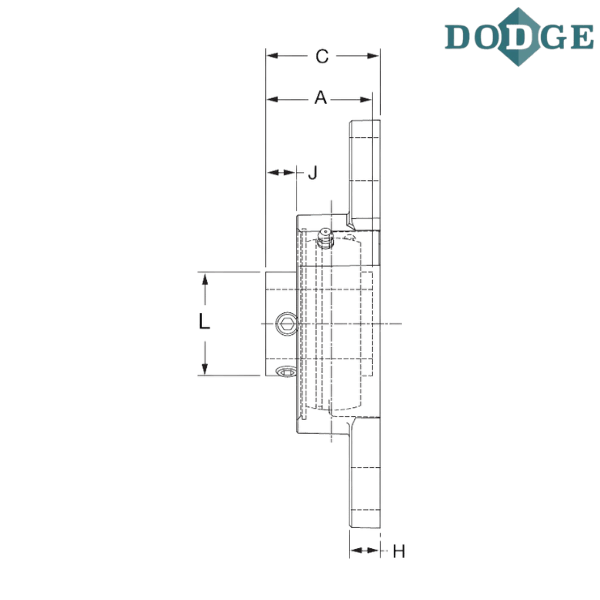

Length Through Bore (A) mm - 31.2
Overall Length (B) mm - 111.3
Thickness (C) mm - 31.7
Bolt Center to Center Length (D) mm - 89.9
F-Bolt Diameter - M10
H (mm) - 8.1
J (mm) - 9.1
L (mm) - 28.2
Overall Width (M) mm - 60.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 20 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
SS - Stainless Steel Insert

** Images are for representation purposes only
