136859 DODGE - TB-SCEZ-40M-SHSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136859 DODGE - TB-SCEZ-40M-SHSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Tapped Base Pillow Blocks)
Series - 208
Shaft Size (mm) - 40
Description - TB-SCEZ-40M-SHSS
Weight (kg) - 1.91

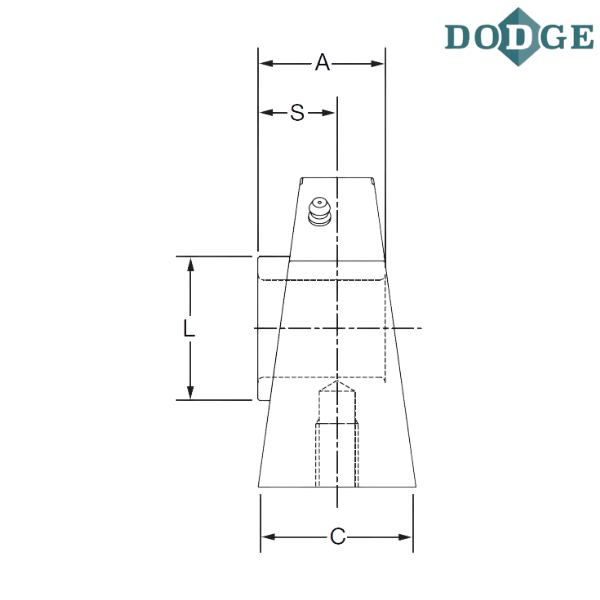

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 114.6
Overall Width (C) mm - 45.7
Bolt Center to Center Length (D) mm - 88.9
Overall Height (J) mm - 101.6
L (mm) - 52.1
Base to Center Height (M) mm - 54
Thread Depth (N) mm - 25.4
Bolt Hole Threads (R) mm - 0.5-13
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
SS - Stainless Steel Insert

** Images are for representation purposes only
