136817 DODGE - LFT-SCEZ-012-SHSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136817 DODGE - LFT-SCEZ-012-SHSS
Category - Ultra Kleen Mounted Bearings (SCEZ SHSS Normal Duty Stainless Steel Housed 2-Bolt Flange Bearing)
Series - 204
Shaft Size (inch) - 0.75
Description - LFT-SCEZ-012-SHSS
Weight (lbs) - 0.68

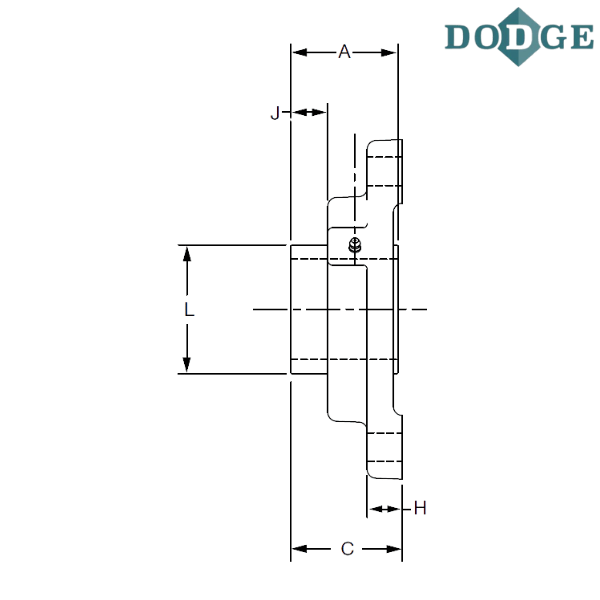

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 3.56
Thickness (C) inch - 1.25
Bolt Center to Center Length (D) inch - 2.81
G (inch) - 0.34
H (inch) - 0.58
J (inch) - 0.37
L (inch) - 1.11
Overall Width (M) inch - 2.38
N (inch) - 1.55
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
SS - Stainless Steel Insert

** Images are for representation purposes only
