136773 DODGE - P2B-SCEZ-012-SHSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136773 DODGE - P2B-SCEZ-012-SHSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - P2B-SCEZ-012-SHSS
Weight (lbs) - 1.31

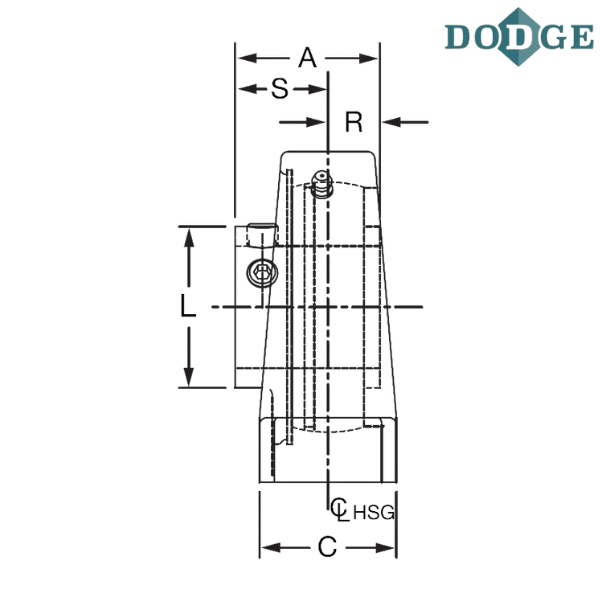

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 5
Overall Width (C) inch - 1
Bolt to Bolt Minimum Distance (D min) inch - 3.38
Bolt to Bolt Maximum Distance (D max) inch - 4.18
F-Bolt Diameter (inch) - 0.375
Bolt Width (G) inch - 0.84
H (inch) - 0.5
Overall Height (J) inch - 2.5
L (inch) - 1.11
Base to Center Height (M) inch - 1.31
R (inch) - 0.5
S (inch) - 0.73
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
SS - Stainless Steel Insert

** Images are for representation purposes only
