Description
Brand - DODGE
Item Number - 136732 DODGE - F4B-SCEZ-111-PSS
Category - Ultra Kleen Mounted Bearings (SCEZ PSS Normal Duty Polymer Housed 4-Bolt Flange Bearings)
Series - 209
Shaft Size (inch) - 1.6875
Description - F4B-SCEZ-111-PSS
Weight (lbs) - 2

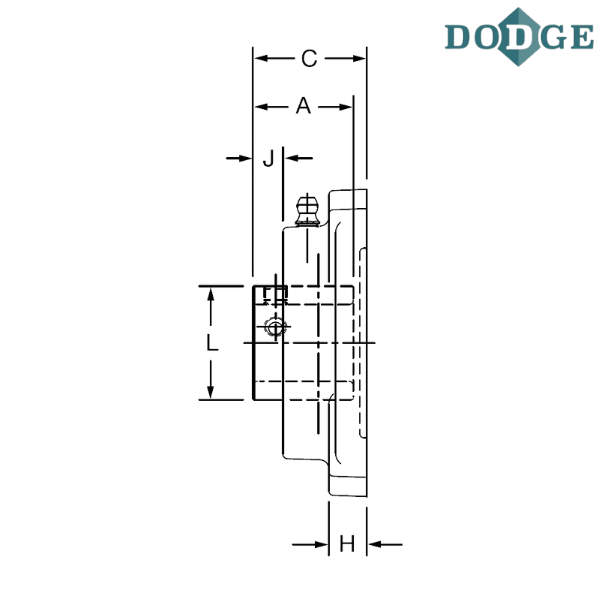

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.38
Thickness (C) inch - 2.1
Bolt Center to Center Length (D) inch - 4.13
F-Bolt Diameter (inch) - 0.5625
H (inch) - 0.72
J (inch) - 0.62
L (inch) - 2.22
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
SS - Stainless Steel Insert
** Images are for representation purposes only
