Description
Brand - DODGE
Item Number - 136721 DODGE - FB-SCEZ-103-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Flange Bearing)
Series - 206
Shaft Size (inch) - 1.1875
Description - FB-SCEZ-103-PSS
Weight (lbs) - 1.07

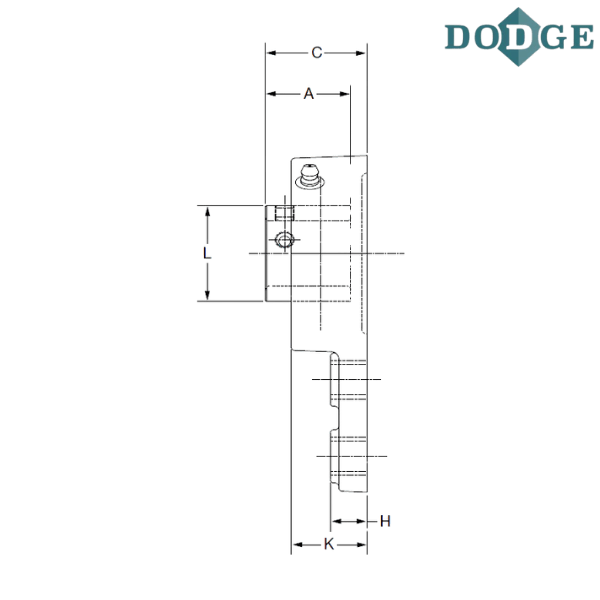

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 5.48
Thickness (C) inch - 1.69
Bolt Center to Center Length (D) inch - 1.88
E (inch) - 2.06
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.25
H (inch) - 0.6
I (inch) - 3.88
Overall Width (J) inch - 3.2
K (inch) - 1.24
L (inch) - 1.57
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FB - Flanged bracket
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
SS - Stainless Steel Insert
** Images are for representation purposes only
