Description
Brand - DODGE

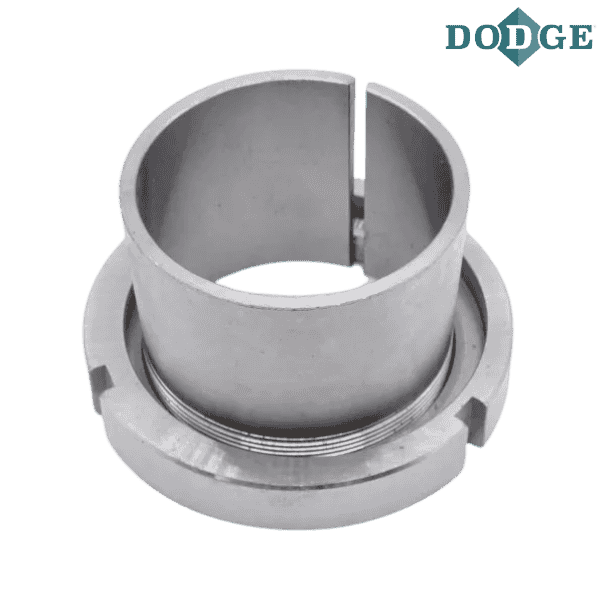

Item Number - 136596 DODGE - AN-GT-15-75M-D
Category - GRIP TIGHT Adapter Ball Bearings (GT and GTM Adapter Sleeve & Lock Nut Assembly)
Series - 215
Shaft Size (mm) - 75
Description - AN-GT-15-75M-D
Weight (kg) - 1

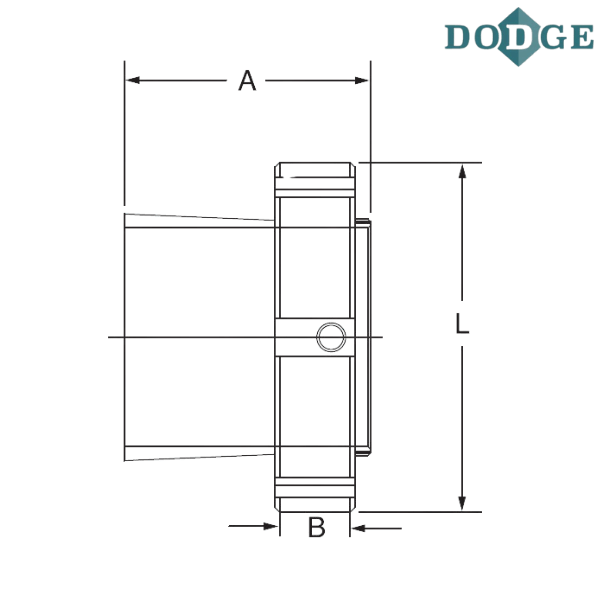

Overall Width (A) mm - 62.5
B (mm) - 19.1
Overall Length (L) mm - 112.8
Notes :
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric
** Images are for representation purposes only
