136367 DODGE - TB-GT-30M

Brand - DODGE
Item Number - 136367 DODGE - TB-GT-30M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - TB-GT-30M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136385
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-06M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136555
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-30M-D
Weight (kg) - 1.7

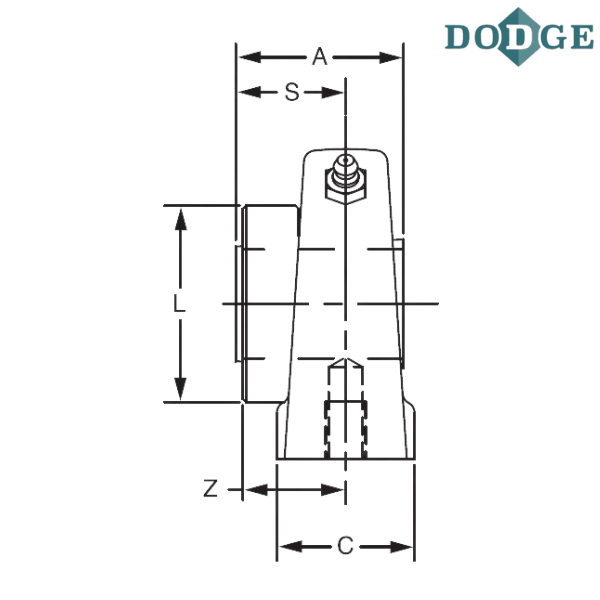

Length Through Bore (A) mm - 40.9

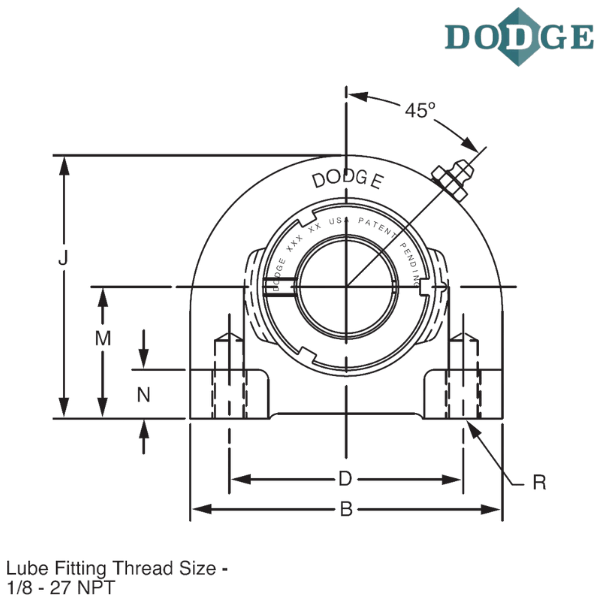

Overall Length (B) mm - 101.6
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 76.2
Overall Height (J) mm - 85.9
L (mm) - 52.8
Base to Center Height (M) mm - 42.9
N (mm) - 16
UNC -Thread (R) mm - M10x1.5
S (mm) - 27.7
Z (mm) - 28.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

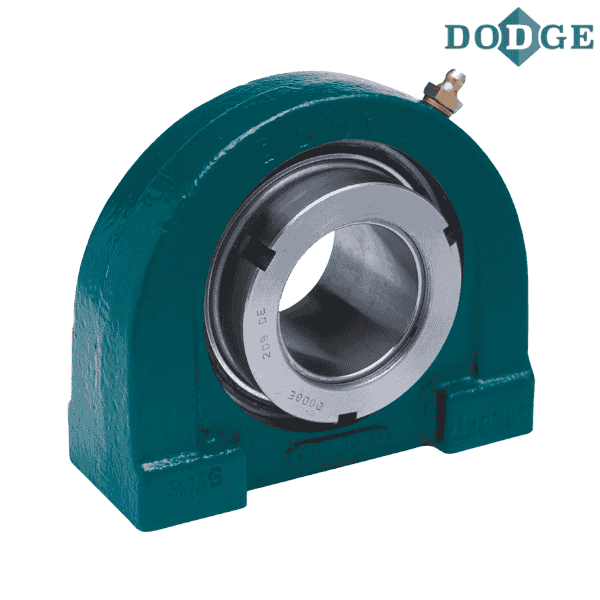

** Images are for representation purposes only
