136365 DODGE - TB-GT-20M

Brand - DODGE
Item Number - 136365 DODGE - TB-GT-20M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - TB-GT-20M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136383
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-04M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136553
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-20M-D
Weight (kg) - 0.9

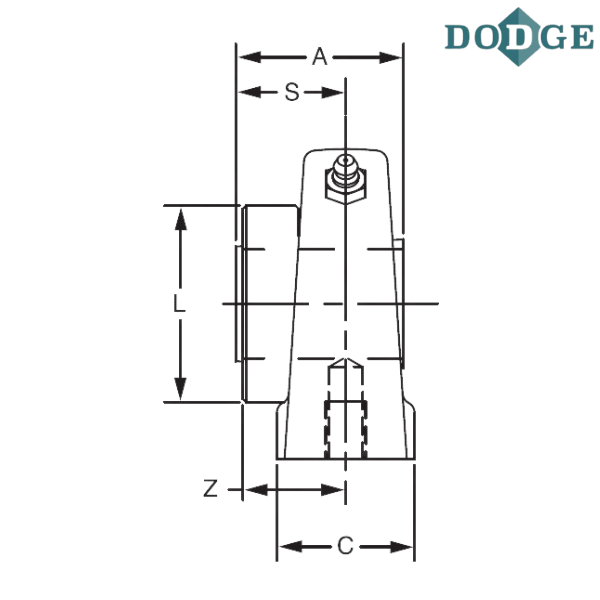

Length Through Bore (A) mm - 37.6

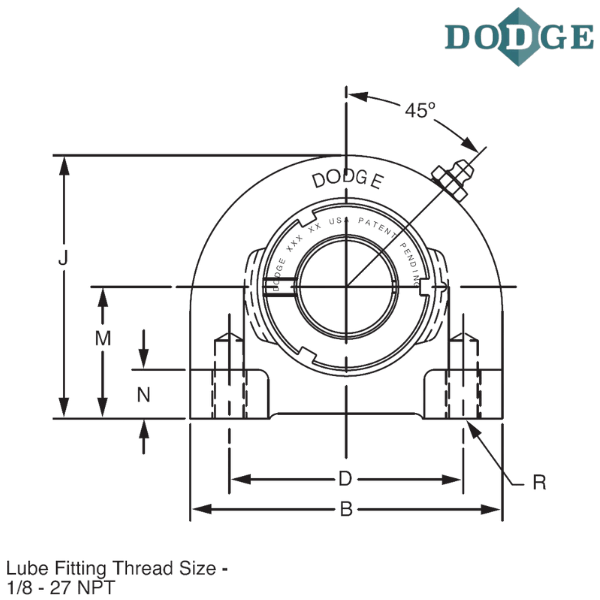

Overall Length (B) mm - 73.2
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 50.8
Overall Height (J) mm - 65
L (mm) - 38.1
Base to Center Height (M) mm - 33.4
N (mm) - 12.7
UNC -Thread (R) mm - M8x1.25
S (mm) - 25.9
Z (mm) - 26.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
