136331 DODGE - LFT-GT-008

Brand - DODGE
Item Number - 136331 DODGE - LFT-GT-008
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (inch) - 0.5
Description - LFT-GT-008
Part Number (Unit without Adapter Sleeve and Nut) - 136355
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-03
Part Number (Adapter and Nut Assembly) - 136588
Description (Adapter and Nut Assembly) - AN-GT-03-008-D
Weight (lbs) - 0.7

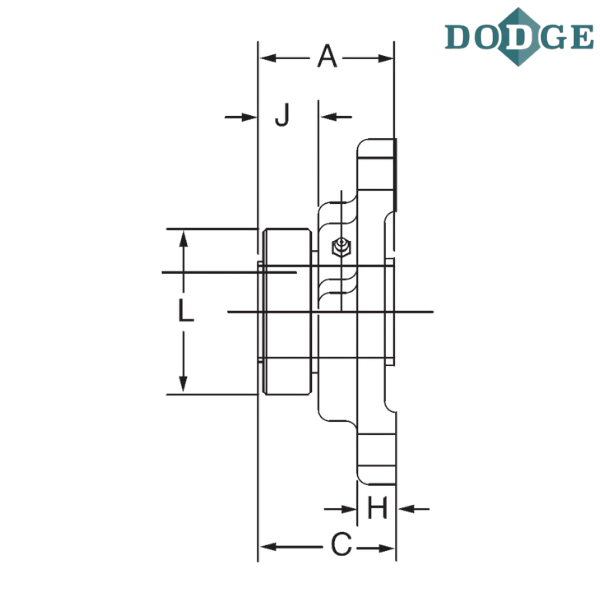

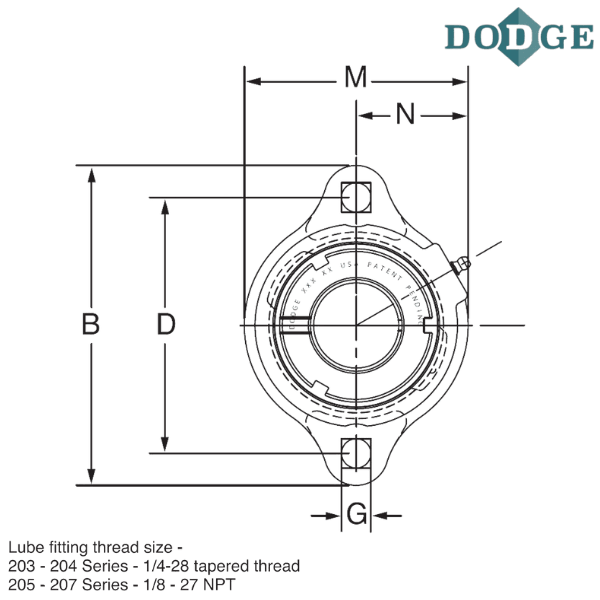

Length Through Bore (A) inch - 1.29
Overall Length (B) inch - 3.19
Thickness (C) inch - 1.3
Bolt Center to Center Length (D) inch - 2.5
G (inch) - 0.28
H (inch) - 0.38
J (inch) - 0.58
L (inch) - 1.4
Overall Width (M) inch - 2.13
N (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
