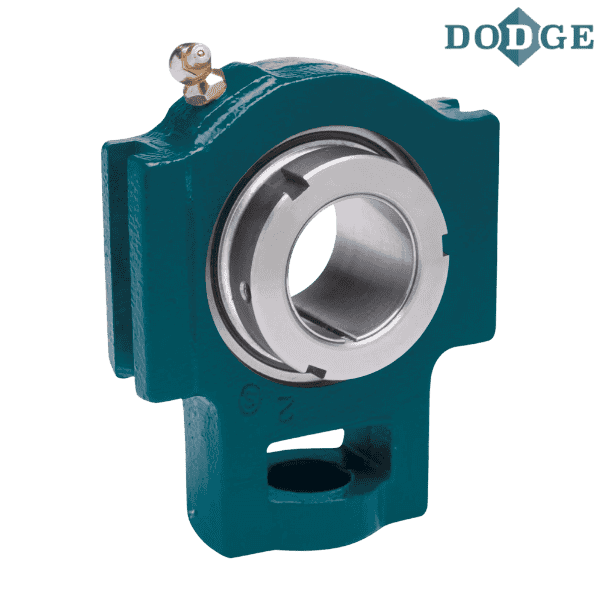

136305 DODGE - WSTU-GTM-35M

Brand - DODGE
Item Number - 136305 DODGE - WSTU-GTM-35M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 208
Shaft Size (mm) - 35
Description - WSTU-GTM-35M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136223
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136563
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-08-35M-D
Weight (kg) - 3.5
Take- Up Frame Size - WS400

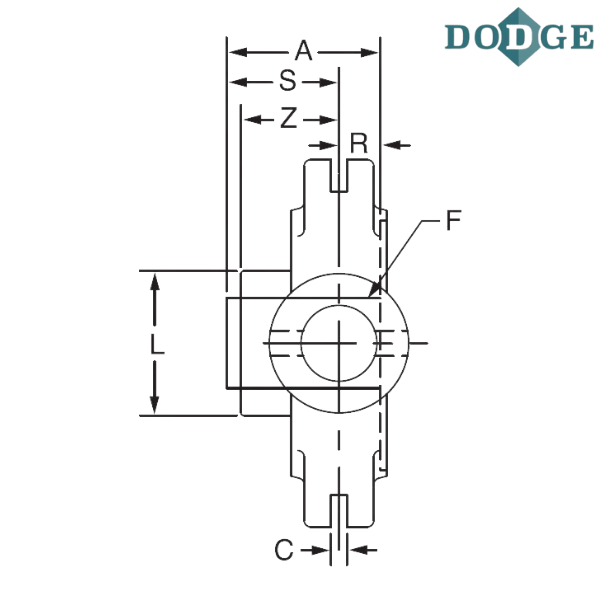

Length Through Bore (A) mm - 46.7

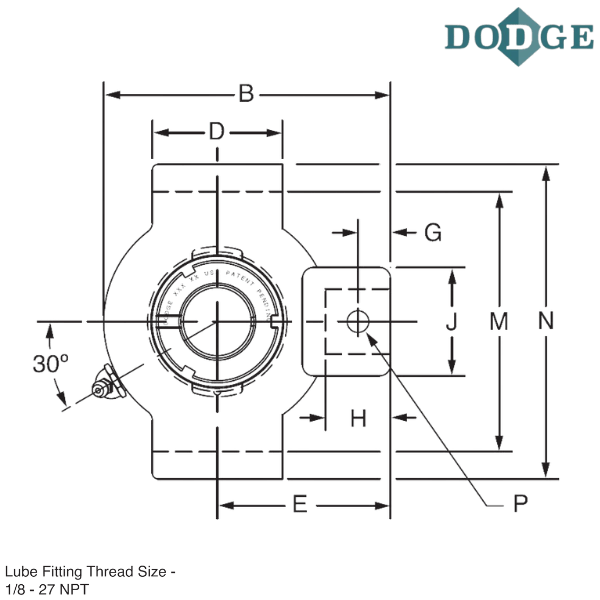

Overall Length (B) mm - 144.5
C (mm) - 17.48
D (mm) - 82.6
E (mm) - 88.9
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 66.5
M (mm) - 101.22/101.98
Overall Width (N) mm - 114.3
R (mm) - 15.5
S (mm) - 31.2
Thickness (T) mm - 49.3
Z (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
