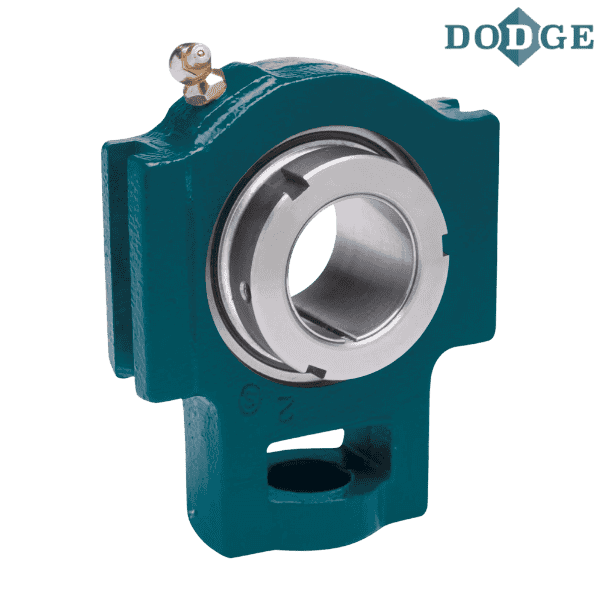

136304 DODGE - WSTU-GTM-30M

Brand - DODGE
Item Number - 136304 DODGE - WSTU-GTM-30M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 207
Shaft Size (mm) - 30
Description - WSTU-GTM-30M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136222
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-07
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136562
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-07-30M-D
Weight (kg) - 3.7
Take- Up Frame Size - WS308

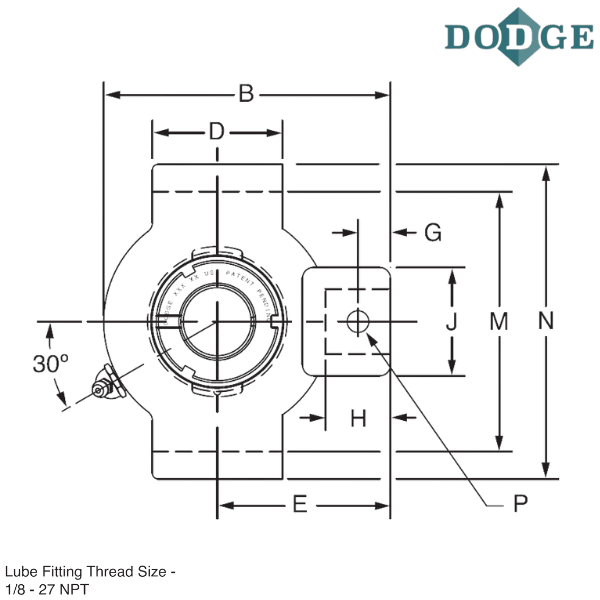

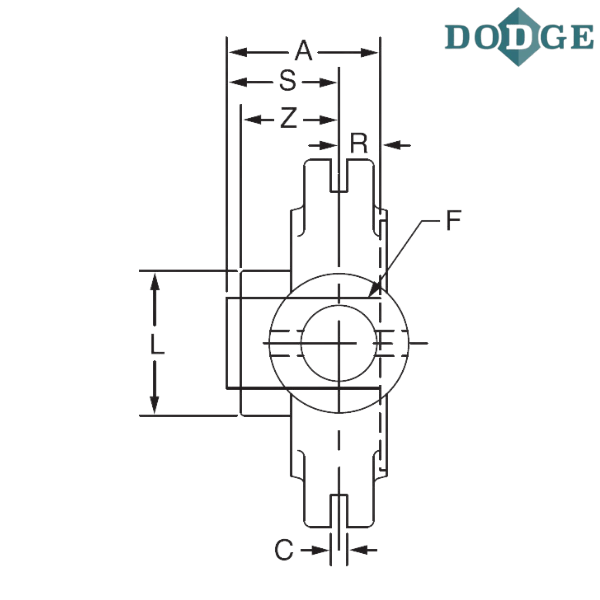

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 123.7
C (mm) - 13.49
D (mm) - 63.5
E (mm) - 77.7
F (Screw Diameter) mm - 19.1
G (mm) - 12.7
H (mm) - 16
J (mm) - 63.5
K (mm) - 36.6
L (mm) - 60.5
M (mm) - 88.39/89.15
Overall Width (N) mm - 104.9
R (mm) - 13.7
S (mm) - 27.4
Thickness (T) mm - 41.3
Z (mm) - 29
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
