136301 DODGE - NSTU-GTM-50M

Brand - DODGE
Item Number - 136301 DODGE - NSTU-GTM-50M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Narrow Slot Take-Up Bearings)
Series - 211
Shaft Size (mm) - 50
Description - NSTU-GTM-50M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136217
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136566
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-11-50M-D
Weight (kg) - 3
Take-Up Frame Size - NS407

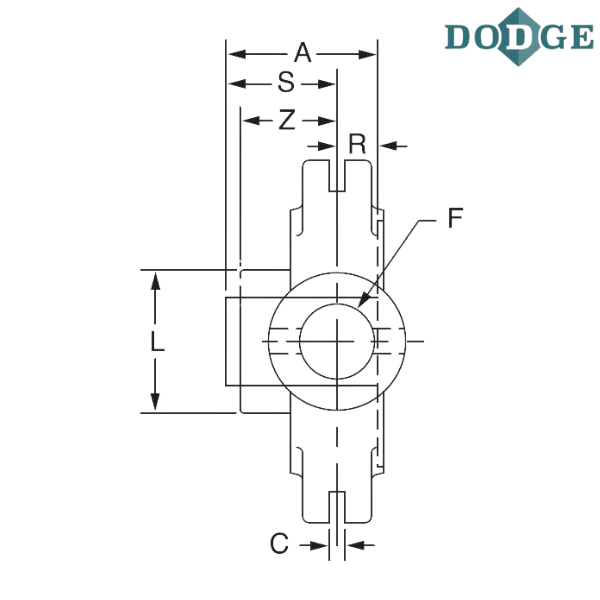

Length Through Bore (A) mm - 49

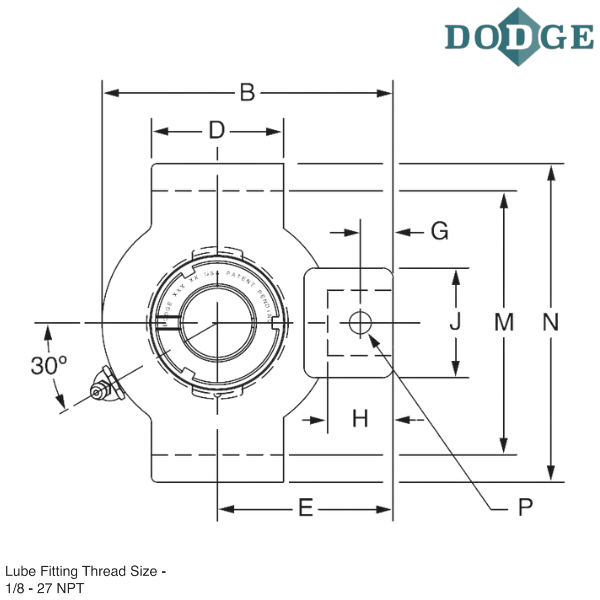

Overall Length (B) mm - 155.7
C (mm) - 7.95
D (mm) - 88.9
E (mm) - 92.2
F (Screw Diameter) mm - 25.4
G (mm) - 17.5
H (mm) - 32.5
J (mm) - 44.5
L (mm) - 87.1
M (mm) - 112.98/112.22
Overall Width (N) mm - 136.7
Pin Diameter (P) mm - 11.2
R (mm) - 17
S (mm) - 32
Z (mm) - 33.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

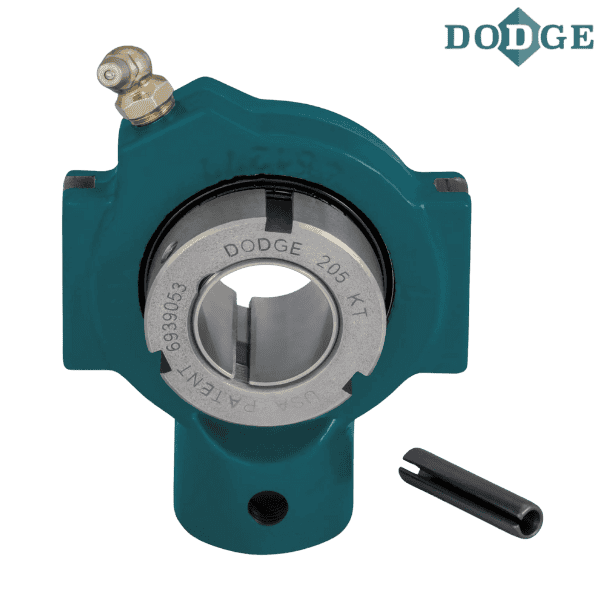

** Images are for representation purposes only
