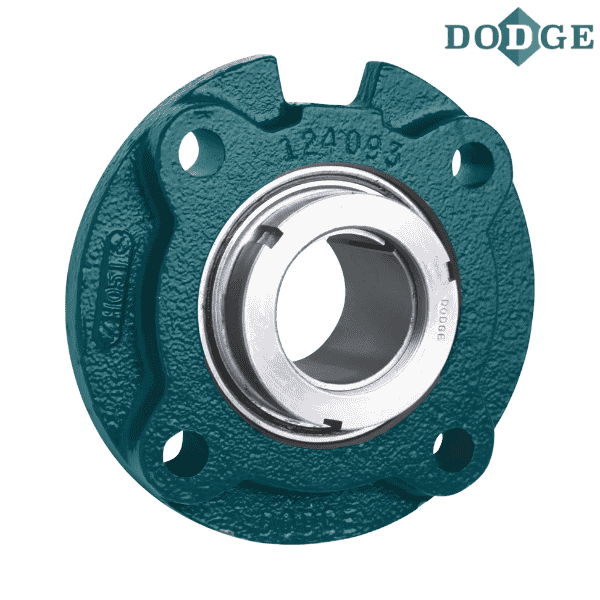

136294 DODGE - FC-GTM-75M

Brand - DODGE
Item Number - 136294 DODGE - FC-GTM-75M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 216
Shaft Size (mm) - 75
Description - FC-GTM-75M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129509
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136570
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-75M-D
Weight (kg) - 12.9

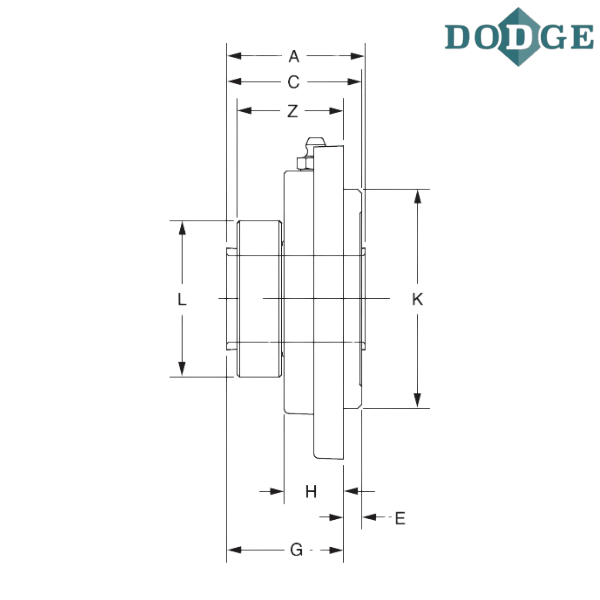

Length Through Bore (A) mm - 68.6

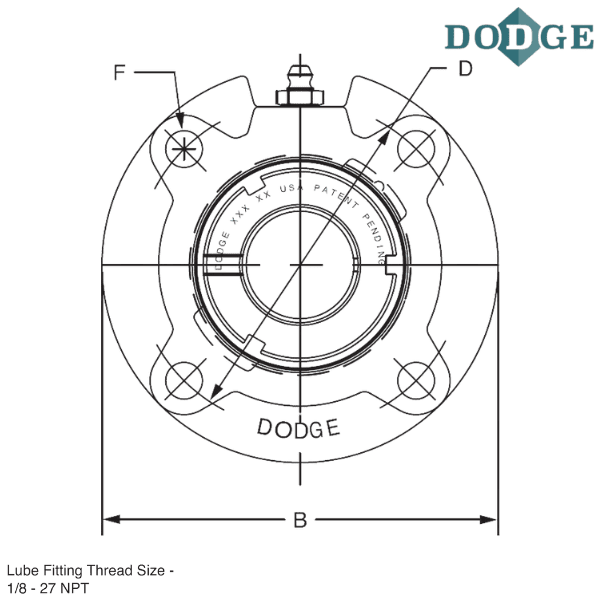

Overall Length (B) mm - 222.3
Thickness (C) mm - 84.6
Bolt Circle (D) mm - 190.5
Pilot Depth (E) mm - 31.8
F-Bolt Diameter - M16
G (mm) - 52.8
H (mm) - 30.2
Pilot Diameter (K) mm - 161.93/161.87
L (mm) - 119.1
Z (mm) - 52.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
