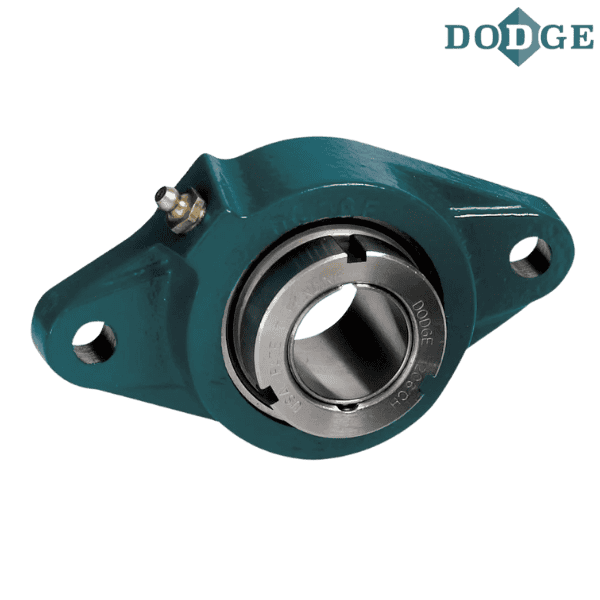

136272 DODGE - F2B-GTM-405M

Brand - DODGE
Item Number - 136272 DODGE - F2B-GTM-405M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 45
Description - F2B-GTM-405M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129497
Description (Unit without Adapter Sleeve and Lock Nut) - F2B-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136565
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-10-45M-D
Weight (kg) - 3.4

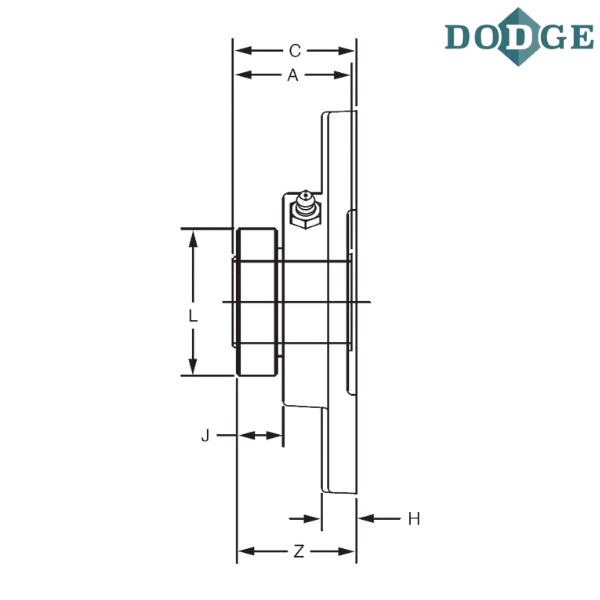

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 189
Thickness (C) mm - 52.6

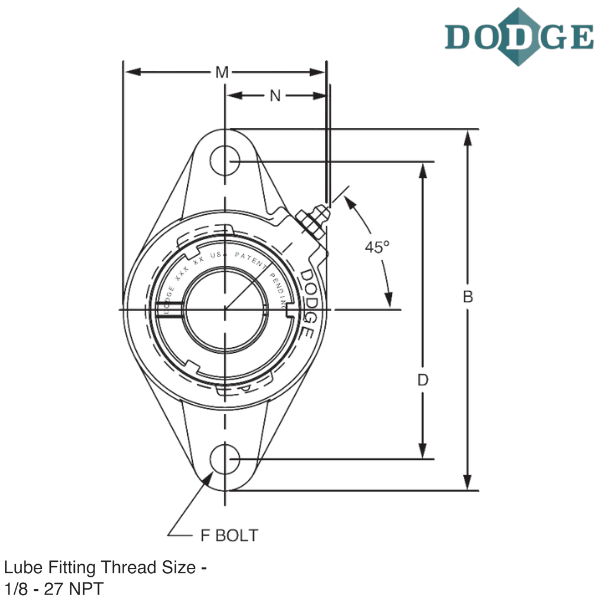

Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter - M16
H (mm) - 16
J (mm) - 16
L (mm) - 79.5
Overall Width (M) mm - 115.8
N (mm) - 51.6
Z (mm) - 53.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
