136266 DODGE - P2B-GTM-75M

Brand - DODGE
Item Number - 136266 DODGE - P2B-GTM-75M
Category - GRIP TIGHT Adapter Ball Bearings (GMT Medium Duty Pillow Blocks)
Series - 216
Shaft Size (mm) - 75
Description - P2B-GTM-75M
Part Number (Unit without Adapter Sleeve and Nut) - 129453
Description (Unit without Adapter Sleeve and Nut) - P2B-GT-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136570
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-75M-D
Weight (kg) - 10.3

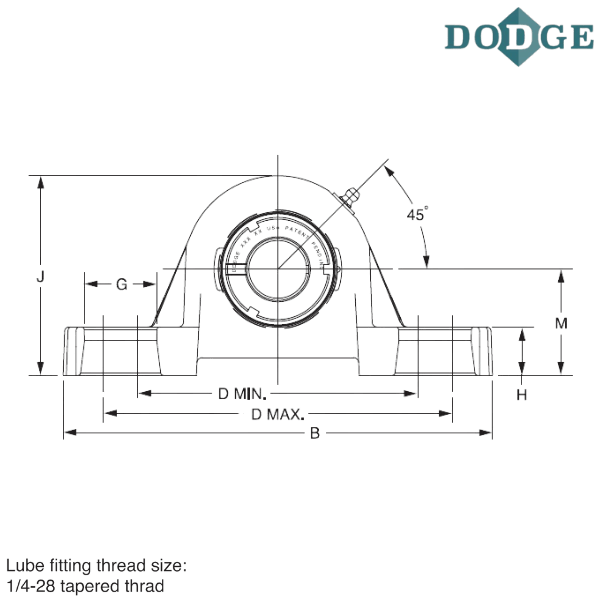

Length Through Bore (A) mm - 68.6
Overall Length (B) mm - 298.5
Width (C) mm - 76.2
Bolt to Bolt Minimum Distance (D min) mm - 215.9
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter - M22
G (mm) - 36.6
H (mm) - 31.8
Overall Height (J) mm - 177
L (mm) - 119.1
Base to Center Height (M) mm - 88.9
R (mm) - 22.6
S (mm) - 46
U (mm) - 139.7
V (mm) - 279.4
W (mm) - 27.7
X (mm) - 3
Z (mm) - 45.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
