136264 DODGE - P2B-GTM-65M

Brand - DODGE
Item Number - 136264 DODGE - P2B-GTM-65M
Category - GRIP TIGHT Adapter Ball Bearings (GMT Medium Duty Pillow Blocks)
Series - 214
Shaft Size (mm) - 65
Description - P2B-GTM-65M
Part Number (Unit without Adapter Sleeve and Nut) - 129430
Description (Unit without Adapter Sleeve and Nut) - P2B-GT-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136568
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-14-65M-D
Weight (kg) - 8.9

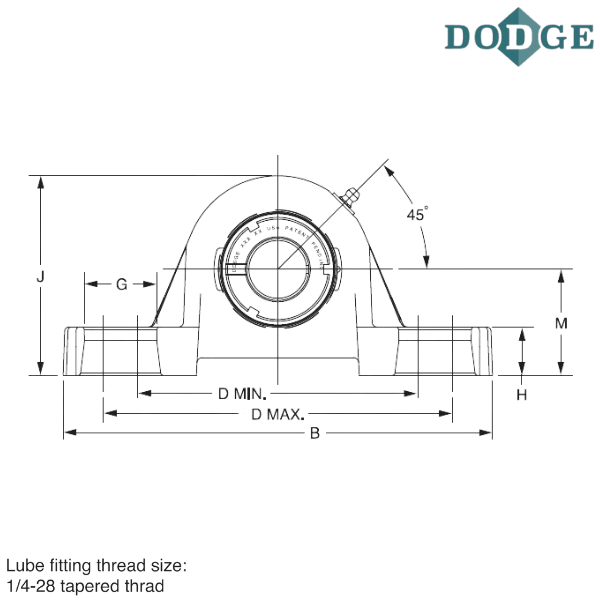

Length Through Bore (A) mm - 60.7
Overall Length (B) mm - 273.1
Width (C) mm - 68.3
Bolt to Bolt Minimum Distance (D min) mm - 190.5
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M18
G (mm) - 33.5
H (mm) - 23.9
Overall Height (J) mm - 154.7
L (mm) - 101.6
Base to Center Height (M) mm - 76.2
R (mm) - 21.3
S (mm) - 39.4
U (mm) - 124
V (mm) - 247.9
W (mm) - 23.9
X (mm) - 3
Z (mm) - 40.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
