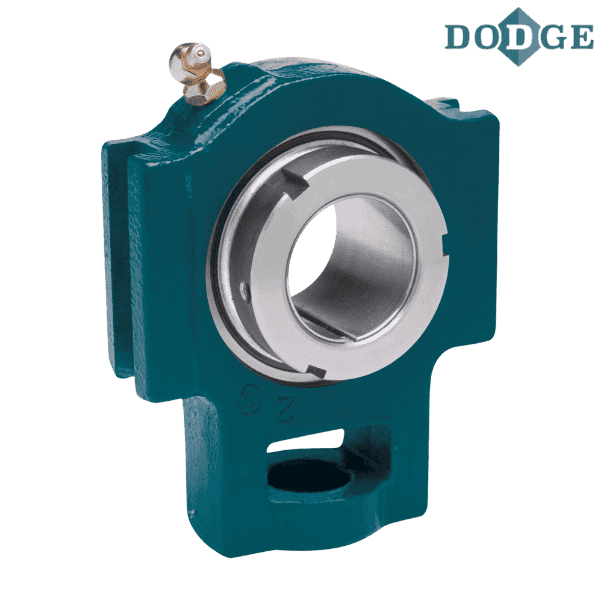

136257 DODGE - WSTU-GT-75M

Brand - DODGE
Item Number - 136257 DODGE - WSTU-GT-75M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 215
Shaft Size (mm) - 75
Description - WSTU-GT-75M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136229
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-15
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136596
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-15-75M-D
Weight (kg) - 8.6
Take- Up Frame Size - WS515

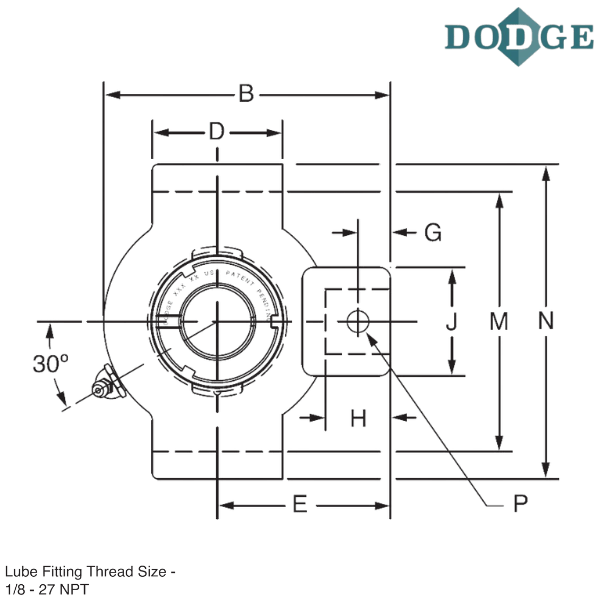

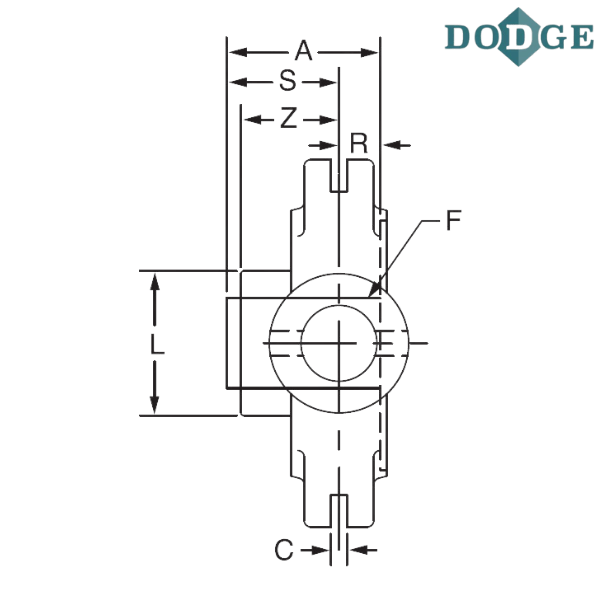

Length Through Bore (A) mm - 62.5
Overall Length (B) mm - 231.9
C (mm) - 27
D (mm) - 120.7
E (mm) - 139.7
F (Screw Diameter) mm - 38.1
G (mm) - 20.6
H (mm) - 31.8
J (mm) - 111.3
K (mm) - 69.9
L (mm) - 112.8
M (mm) - 150.44/151.21
Overall Width (N) mm - 169.9
R (mm) - 21.8
S (mm) - 40.6
Thickness (T) mm - 69.9
Z (mm) - 40.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
