136253 DODGE - WSTU-GT-50M

Brand - DODGE
Item Number - 136253 DODGE - WSTU-GT-50M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 210
Shaft Size (mm) - 50
Description - WSTU-GT-50M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136225
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136558
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-50M-D
Weight (kg) - 2.9
Take- Up Frame Size - WS400

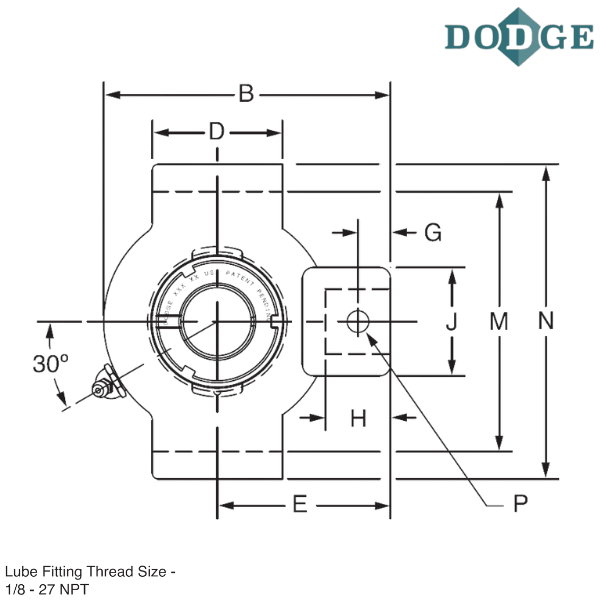

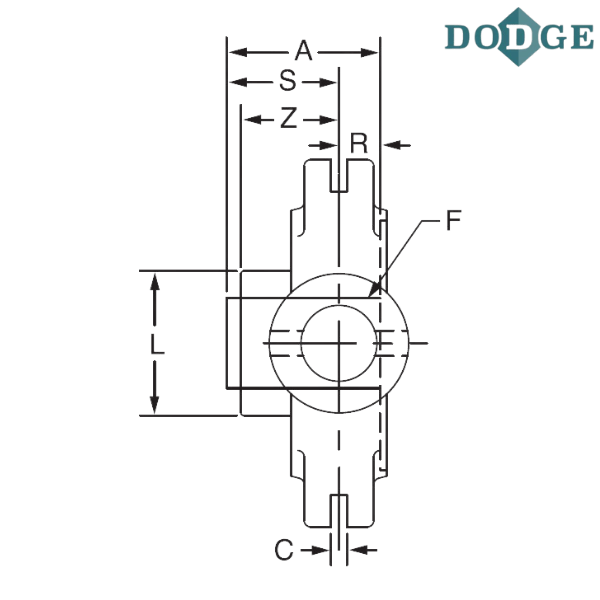

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 147.8
C (mm) - 17.48
D (mm) - 85.9
E (mm) - 90.4
F (Screw Diameter) mm - 25.4
G (mm) - 16
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.3
L (mm) - 79.5
M (mm) - 101.22/101.98
Overall Width (N) mm - 120.7
R (mm) - 16
S (mm) - 31.2
Thickness (T) mm - 49.3
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

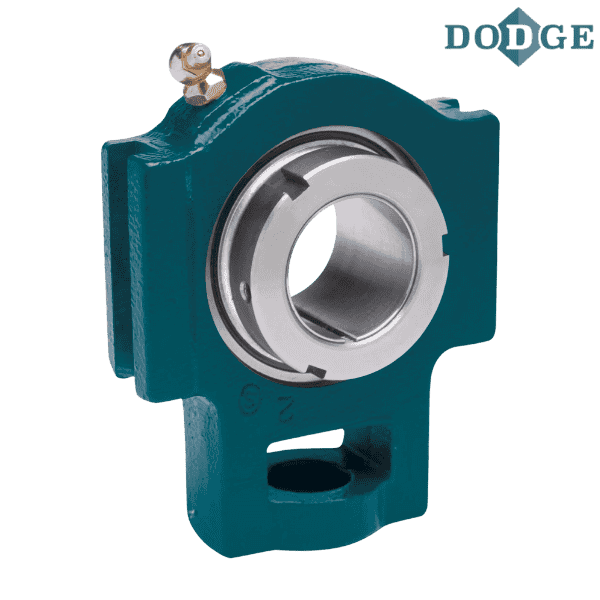

** Images are for representation purposes only
