136248 DODGE - WSTU-GT-25M

Brand - DODGE
Item Number - 136248 DODGE - WSTU-GT-25M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 205
Shaft Size (mm) - 25
Description - WSTU-GT-25M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136220
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136554
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-25M-D
Weight (kg) - 1
Take- Up Frame Size - WS300

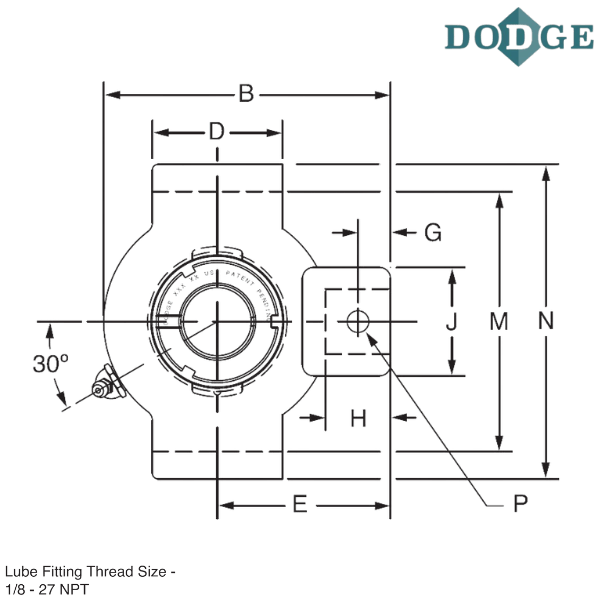

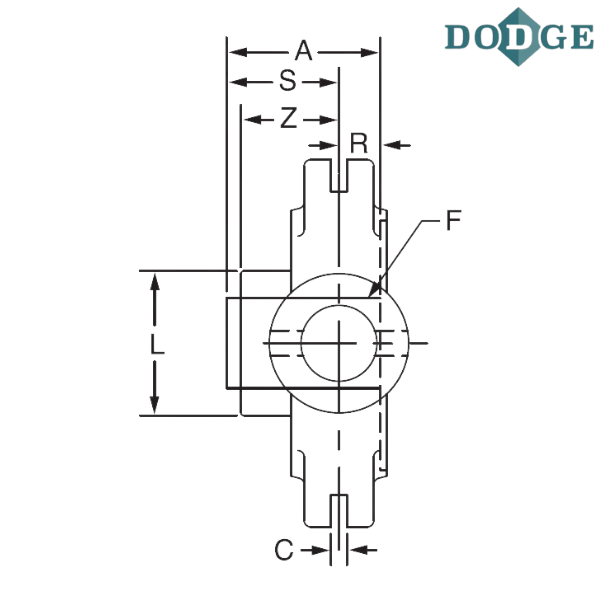

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 96.8
C (mm) - 13.49
D (mm) - 50.8
E (mm) - 62
F (Screw Diameter) mm - 15.9
G (mm) - 9.7
H (mm) - 16
J (mm) - 50.8
K (mm) - 33.3
L (mm) - 45.7
M (mm) - 75.82/76.58
Overall Width (N) mm - 92.2
R (mm) - 12.2
S (mm) - 24.9
Thickness (T) mm - 35.1
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

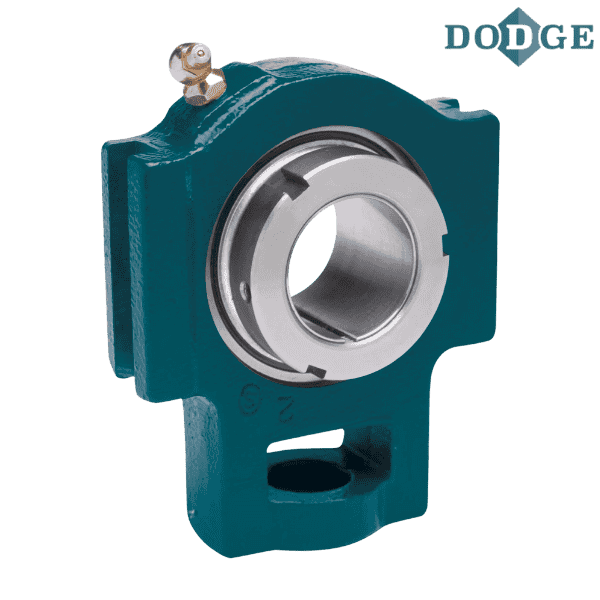

** Images are for representation purposes only
