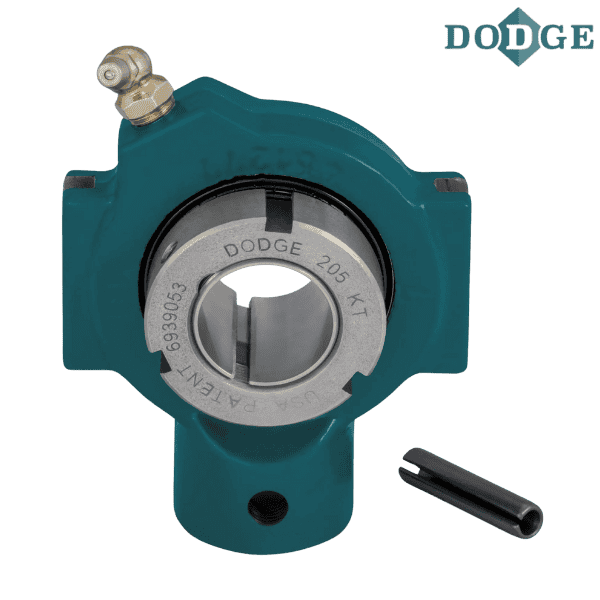

136238 DODGE - NSTU-GT-20M

Brand - DODGE
Item Number - 136238 DODGE - NSTU-GT-20M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 204
Shaft Size (mm) - 20
Description - NSTU-GT-20M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136210
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-04
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136553
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-20M-D
Weight (kg) - 0.8
Take-Up Frame Size - NS210

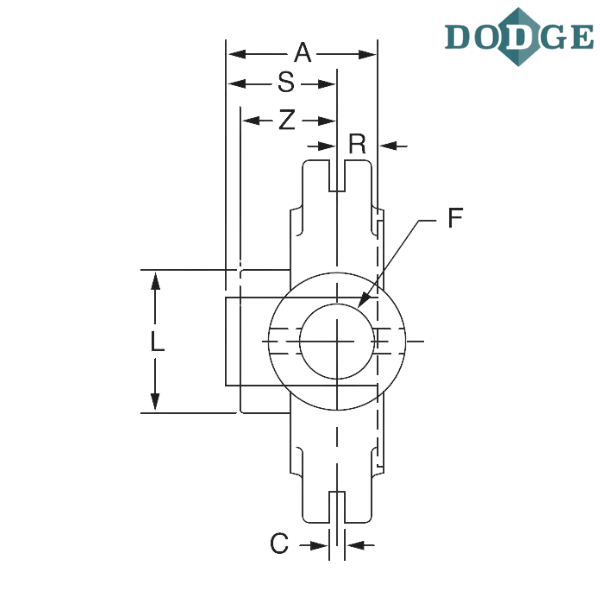

Length Through Bore (A) mm - 37.6

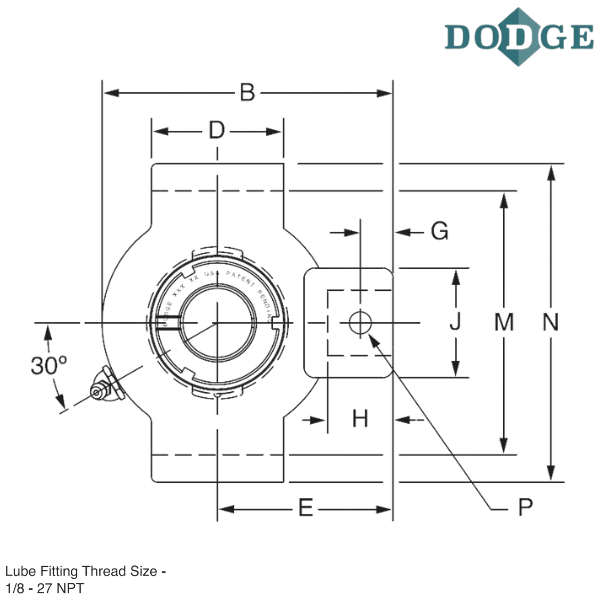

Overall Length (B) mm - 88.9
C (mm) - 6.35
D (mm) - 38.1
E (mm) - 55.6
F (Screw Diameter) mm - 19.1
G (mm) - 11.2
H (mm) - 22.4
J (mm) - 35.1
L (mm) - 38.1
M (mm) - 66.93/66.17
Overall Width (N) mm - 79.5
Pin Diameter (P) mm - 8.1
R (mm) - 11.7
S (mm) - 25.9
Z (mm) - 26.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
