136197 DODGE - TP-GTM-307

Brand - DODGE
Item Number - 136197 DODGE - TP-GTM-307
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Top Angle Take-Up Bearings)
Series - 218
Shaft Size (inch) - 3.4375
Description - TP-GTM-307
Part Number (Unit without Adapter and Nut) - 136237
Description (Unit without Adapter and Nut) - TP-GT-18
Part Number (Adapter and Nut Assembly) - 136552
Description (Adapter and Nut Assembly) - AN-GTM-18-307-D
Weight (lbs) - 41.4
Take-Up Frame Size - TP50

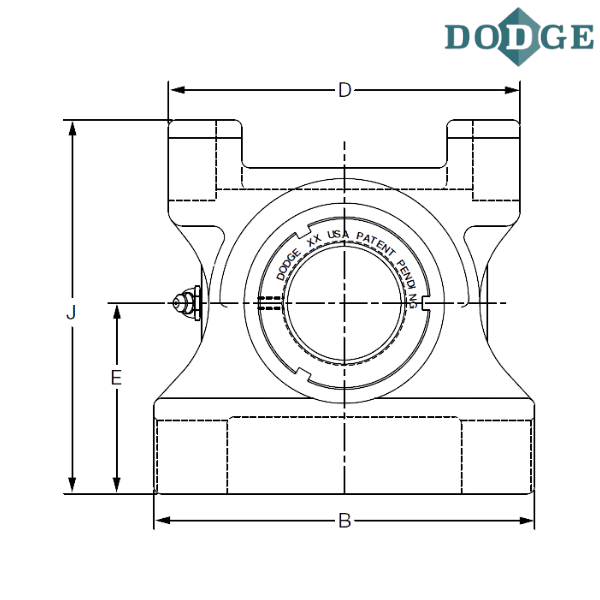

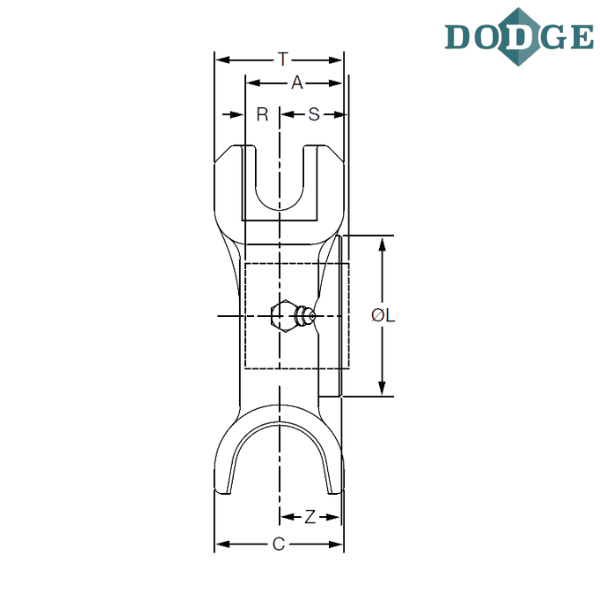

Length Through Bore (A) inch - 2.8
Overall Length (B) inch - 11
Thickness (C) inch - 3.13
D (inch) - 10.5
E (inch) - 5.5
Overall Width (J) inch - 11
L (inch) - 5.19
R (inch) - 1.02
S (inch) - 1.78
T (inch) - 3.13
Z (inch) - 1.81
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

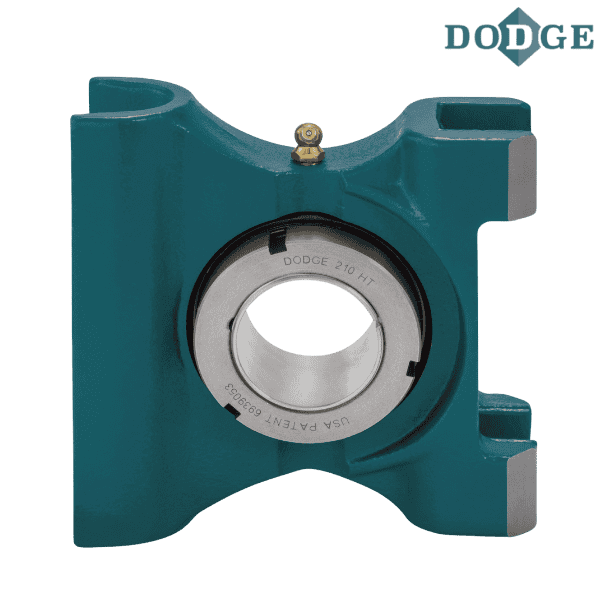

** Images are for representation purposes only
