136196 DODGE - TP-GTM-300

Brand - DODGE
Item Number - 136196 DODGE - TP-GTM-300
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Top Angle Take-Up Bearings)
Series - 216
Shaft Size (inch) - 3
Description - TP-GTM-300
Part Number (Unit without Adapter and Nut) - 136236
Description (Unit without Adapter and Nut) - TP-GT-16
Part Number (Adapter and Nut Assembly) - 136551
Description (Adapter and Nut Assembly) - AN-GTM-16-300-D
Weight (lbs) - 30.7
Take-Up Frame Size - TP50

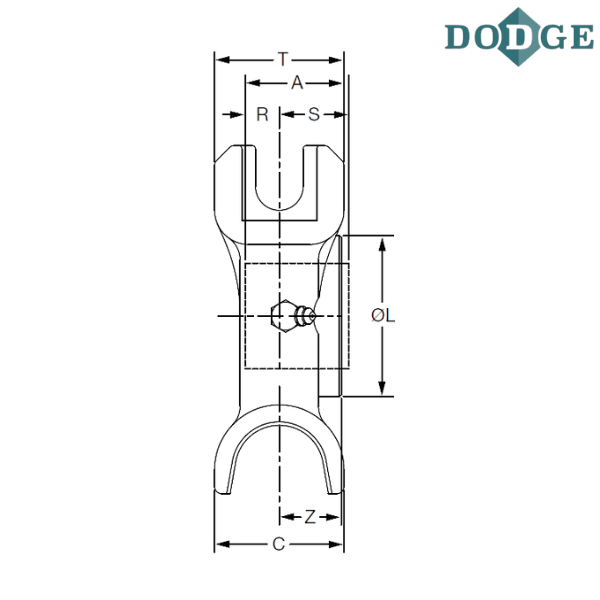

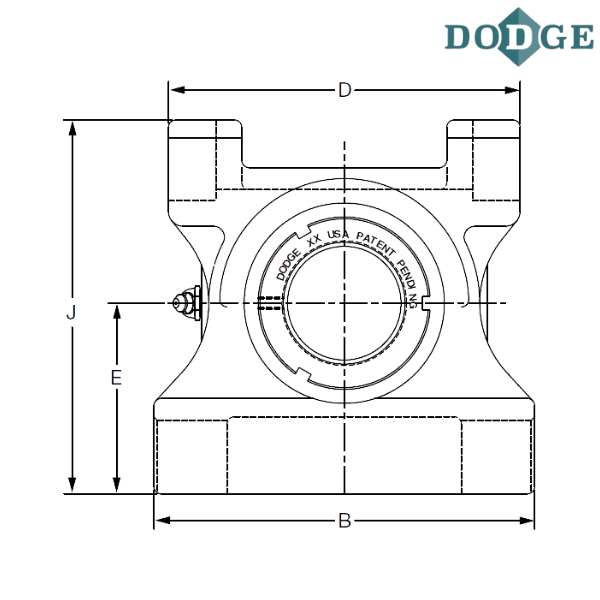

Length Through Bore (A) inch - 2.7
Overall Length (B) inch - 9.5
Thickness (C) inch - 2.75
D (inch) - 9
E (inch) - 4.5
Overall Width (J) inch - 9.63
L (inch) - 4.69
R (inch) - 0.99
S (inch) - 1.71
T (inch) - 3.13
Z (inch) - 1.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

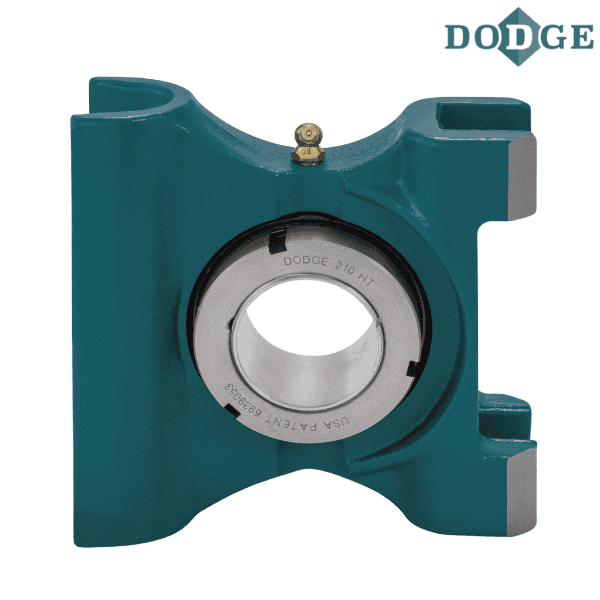

** Images are for representation purposes only
