136188 DODGE - TP-GTM 115

Brand - DODGE
Item Number - 136188 DODGE - TP-GTM 115
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Top Angle Take-Up Bearings)
Series - 211
Shaft Size (inch) - 1.9375
Description - TP-GTM 115
Part Number (Unit without Adapter and Nut) - 136232
Description (Unit without Adapter and Nut) - TP-GT-11
Part Number (Adapter and Nut Assembly) - 136545
Description (Adapter and Nut Assembly) - AN-GTM-11-115-D
Weight (lbs) - 14
Take-Up Frame Size - TP20

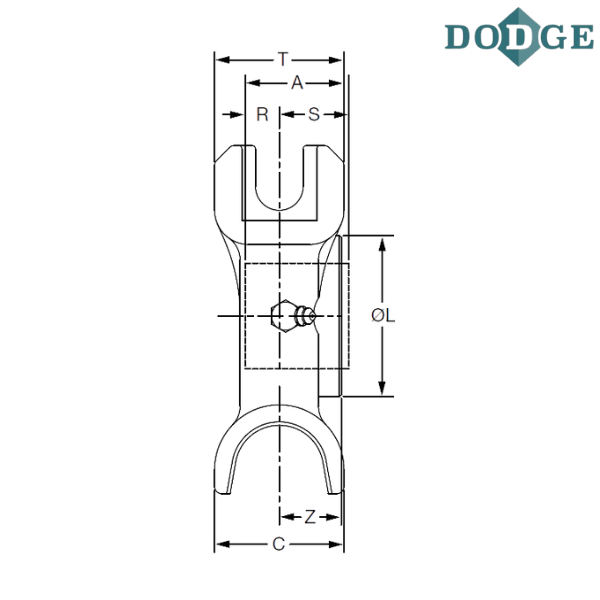

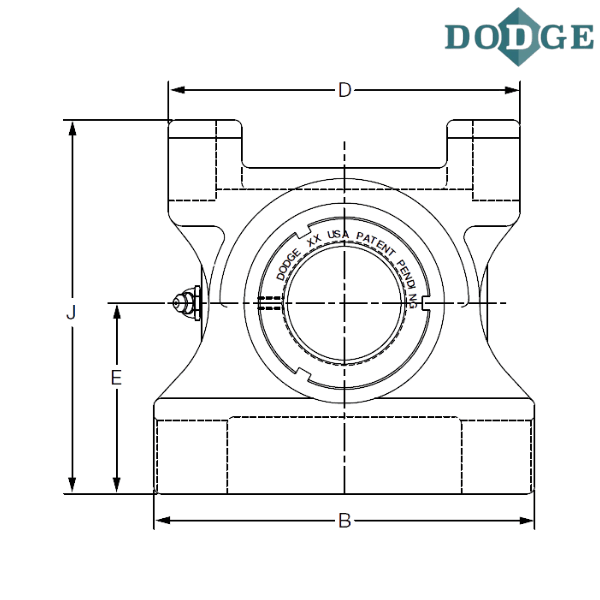

Length Through Bore (A) inch - 1.93
Overall Length (B) inch - 7
Thickness (C) inch - 2.5
D (inch) - 6.75
E (inch) - 3.38
Overall Width (J) inch - 7.88
L (inch) - 3.43
R (inch) - 0.67
S (inch) - 1.26
T (inch) - 2.38
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

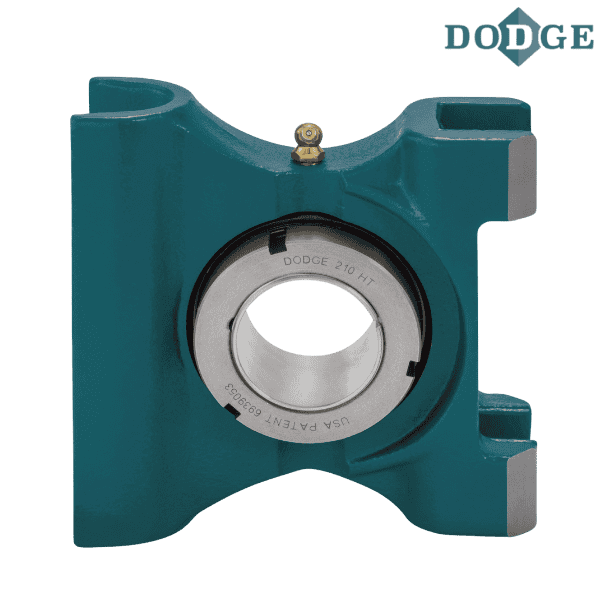

** Images are for representation purposes only
