136187 DODGE - TP-GTM-112

Brand - DODGE
Item Number - 136187 DODGE - TP-GTM-112
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Top Angle Take-Up Bearings)
Series - 210
Shaft Size (inch) - 1.75
Description - TP-GTM-112
Part Number (Unit without Adapter and Nut) - 136231
Description (Unit without Adapter and Nut) - TP-GT-10
Part Number (Adapter and Nut Assembly) - 136599
Description (Adapter and Nut Assembly) - AN-GTM-10-112-D
Weight (lbs) - 11.2
Take-Up Frame Size - TP10

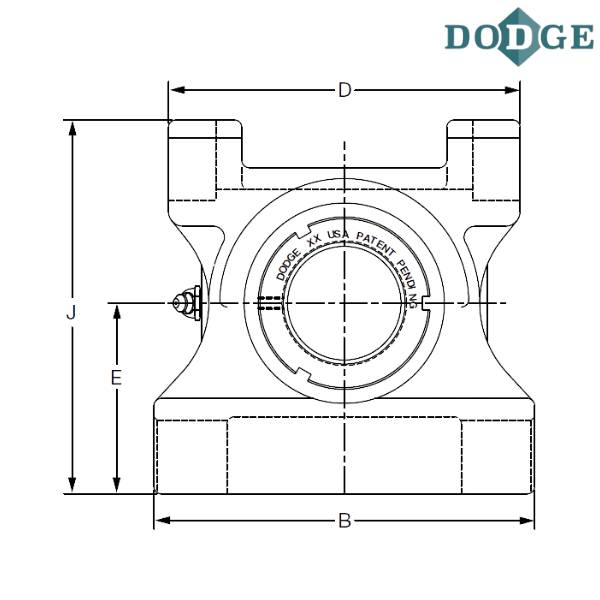

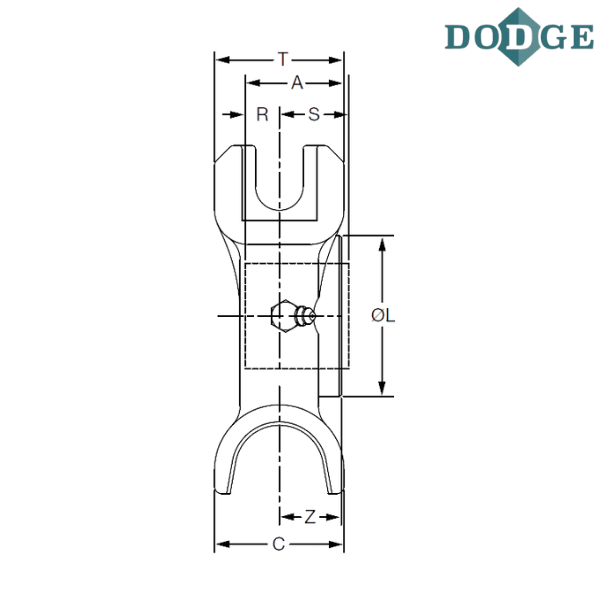

Length Through Bore (A) inch - 1.86
Overall Length (B) inch - 6.5
Thickness (C) inch - 2.38
D (inch) - 6
E (inch) - 3.25
Overall Width (J) inch - 6.38
L (inch) - 3.13
R (inch) - 0.63
S (inch) - 1.23
T (inch) - 2.38
Z (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

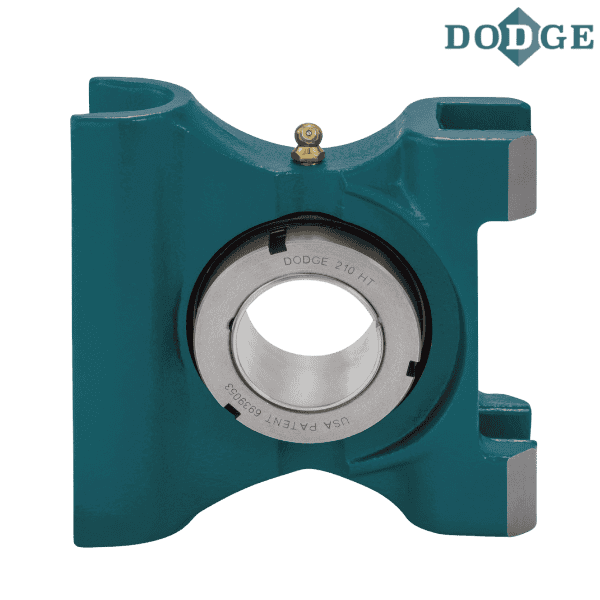

** Images are for representation purposes only
