136180 DODGE - WSTU-GTM-204

Brand - DODGE
Item Number - 136180 DODGE - WSTU-GTM-204
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - WSTU-GTM-204
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136227
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136601
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-12-204-D
Weight (lbs) - 12.6
Take- Up Frame Size - WS502

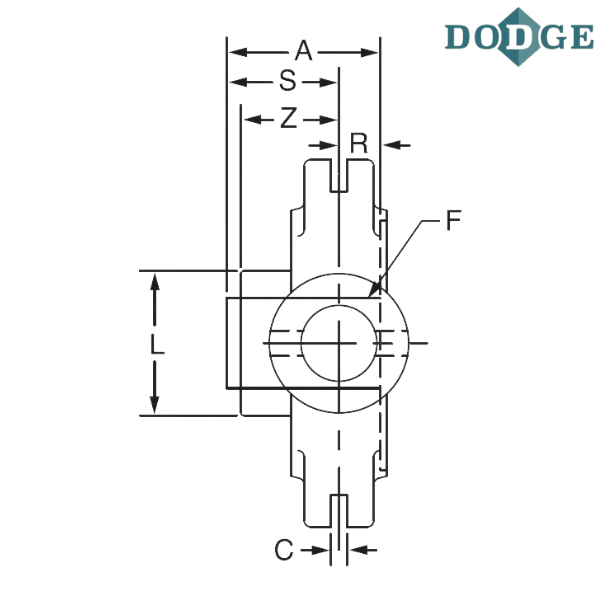

Length Through Bore (A) inch - 2.12

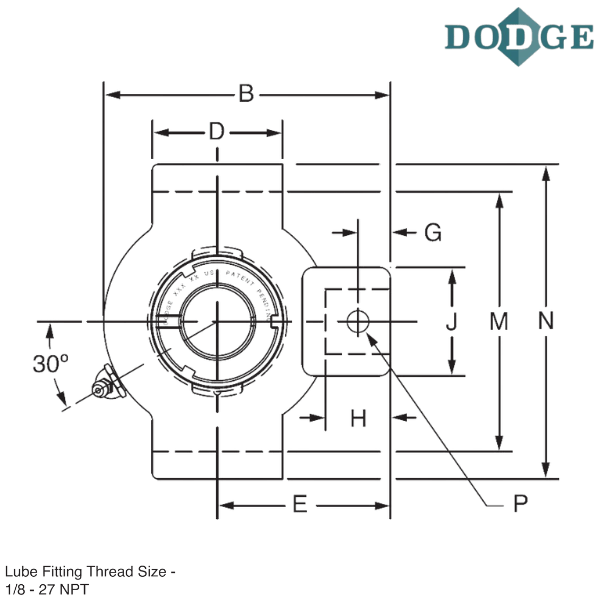

Overall Length (B) inch - 7.5
C (inch) - 1.063
D (inch) - 4
E (inch) - 4.69
F (Screw Diameter) inch - 1.25
G (inch) - 0.75
H (inch) - 1.25
J (inch) - 4
K (inch) - 2.5
L (inch) - 3.69
M (inch) - 5.110/5.140
Overall Width (N) inch - 5.88
R (inch) - 0.73
S (inch) - 1.39
Thickness (T) inch - 2.5
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

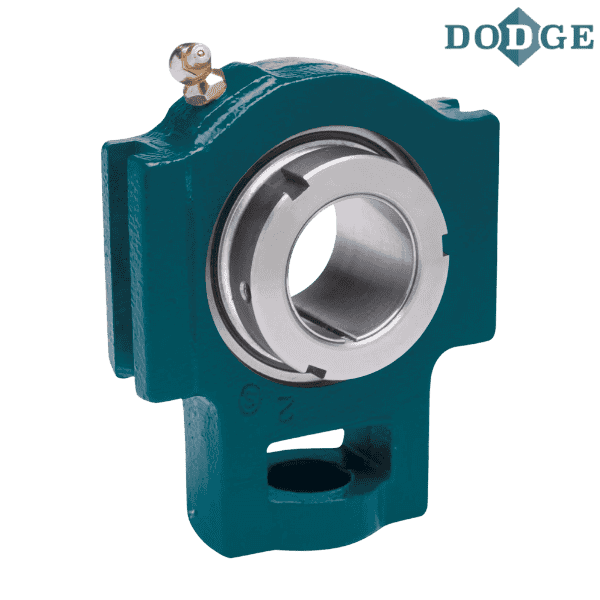

** Images are for representation purposes only
