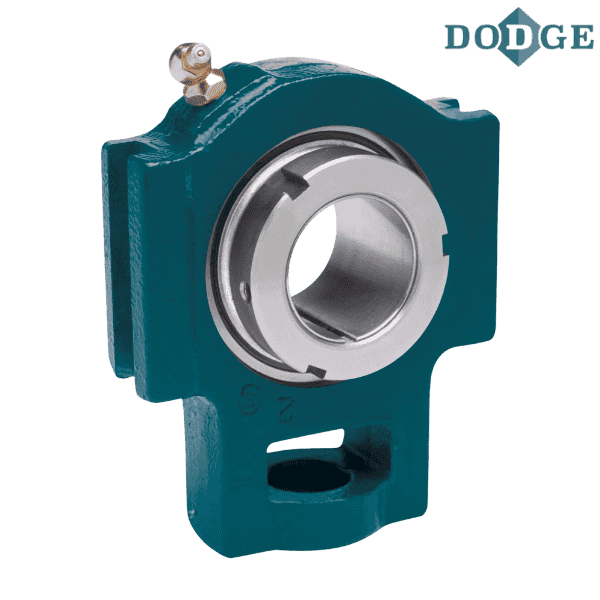

136177 DODGE - WSTU-GTM-115

Brand - DODGE
Item Number - 136177 DODGE - WSTU-GTM-115
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 211
Shaft Size (inch) - 1.9375
Description - WSTU-GTM-115
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136226
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136545
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-11-115-D
Weight (lbs) - 11.2
Take- Up Frame Size - WS502

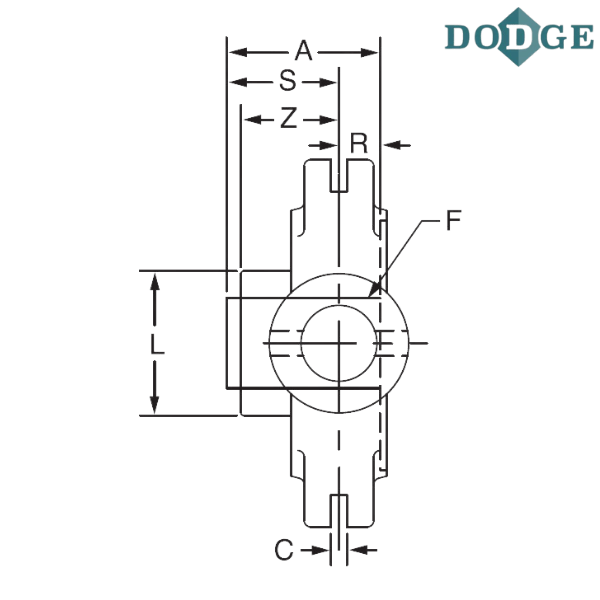

Length Through Bore (A) inch - 1.93

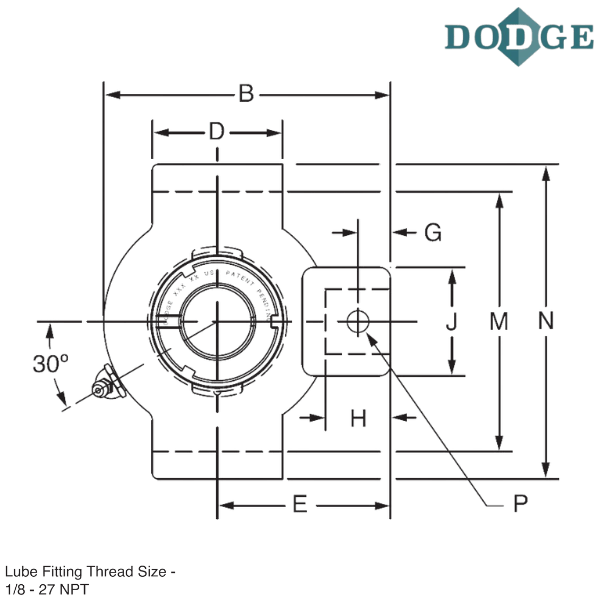

Overall Length (B) inch - 6.69
C (inch) - 1.063
D (inch) - 3.75
E (inch) - 4.19
F (Screw Diameter) inch - 1.25
G (inch) - 0.75
H (inch) - 1
J (inch) - 4
K (inch) - 2.5
L (inch) - 3.43
M (inch) - 5.110/5.140
Overall Width (N) inch - 5.88
R (inch) - 0.67
S (inch) - 1.26
Thickness (T) inch - 2.5
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
