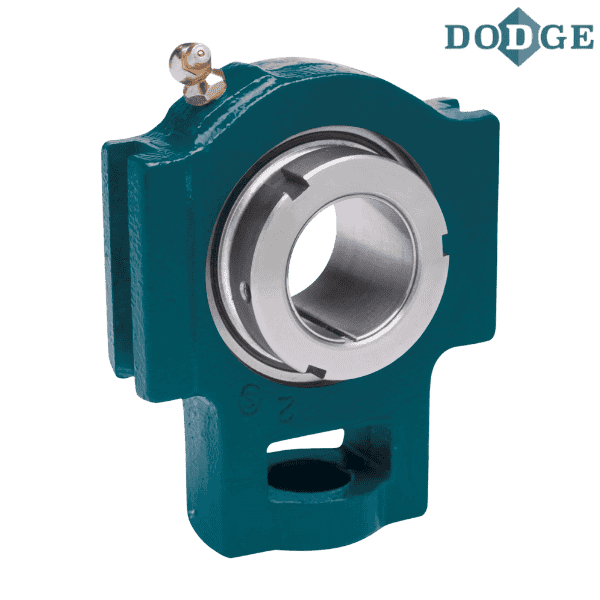

136175 DODGE - WSTU-GTM-111

Brand - DODGE
Item Number - 136175 DODGE - WSTU-GTM-111
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 210
Shaft Size (inch) - 1.6875
Description - WSTU-GTM-111
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136225
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136544
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-10-111-D
Weight (lbs) - 7.7
Take- Up Frame Size - WS400

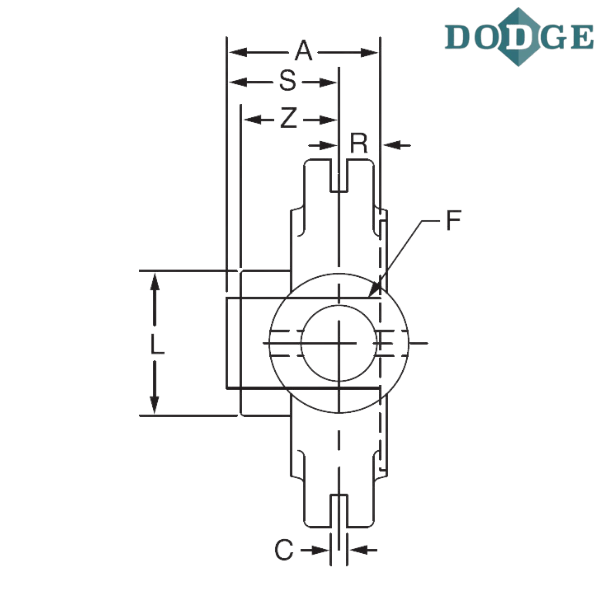

Length Through Bore (A) inch - 1.86

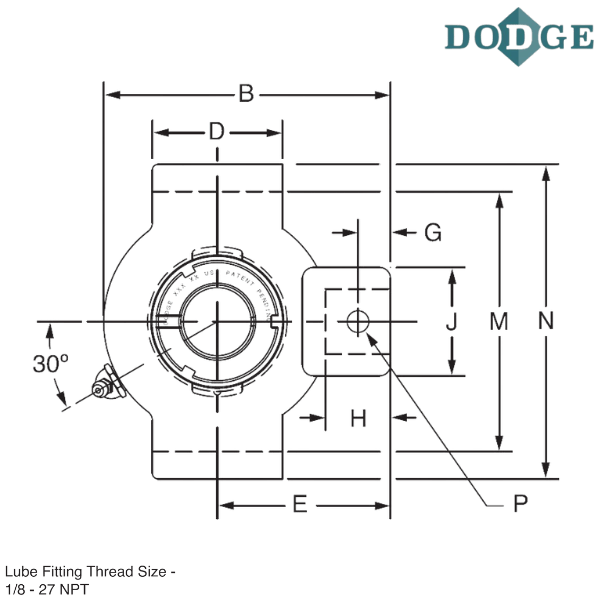

Overall Length (B) inch - 5.82
C (inch) - 0.688
D (inch) - 3.38
E (inch) - 3.56
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 3.13
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.75
R (inch) - 0.63
S (inch) - 1.23
Thickness (T) inch - 1.94
Z (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
