136166 DODGE - NSTU-GTM-115

Brand - DODGE
Item Number - 136166 DODGE - NSTU-GTM-115
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Narrow Slot Take-Up Bearings)
Series - 211
Shaft Size (inch) - 1.9375
Description - NSTU-GTM-115
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136217
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136545
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-11-115-D
Weight (lbs) - 6.8
Take-Up Frame Size - NS407

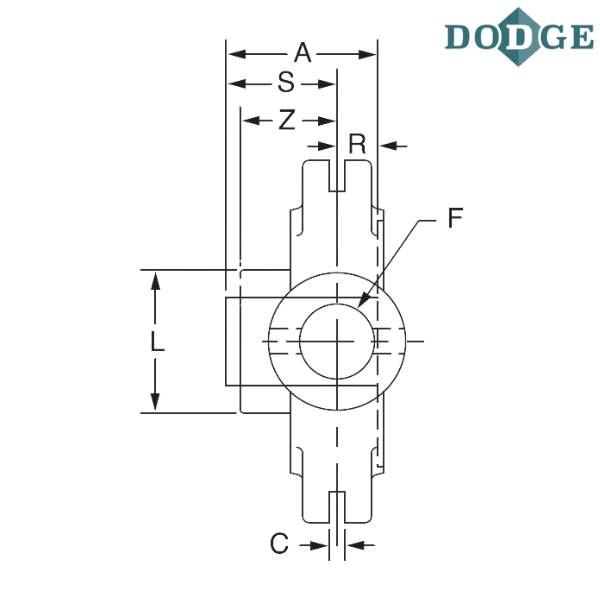

Length Through Bore (A) inch - 1.93

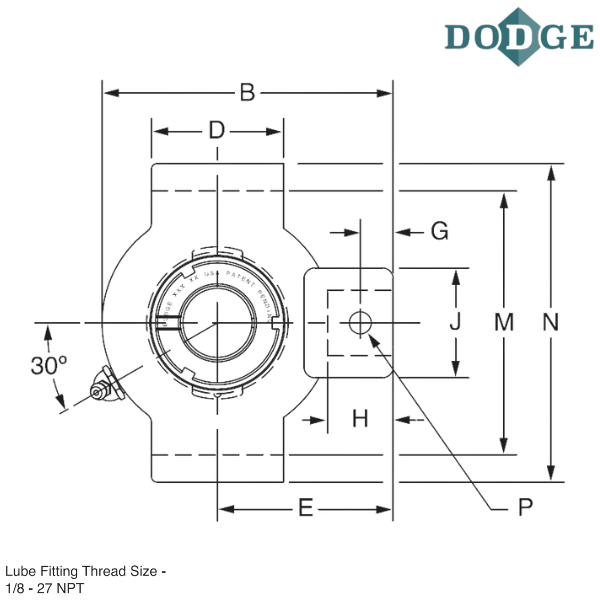

Overall Length (B) inch - 6.13
C (inch) - 0.313
D (inch) - 3.5
E (inch) - 3.63
F (Screw Diameter) inch - 1
G (inch) - 0.69
H (inch) - 1.28
J (inch) - 1.75
L (inch) - 3.43
M (inch) - 4.448/4.418
Overall Width (N) inch - 5.38
Pin Diameter (P) inch - 0.44
R (inch) - 0.67
S (inch) - 1.26
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

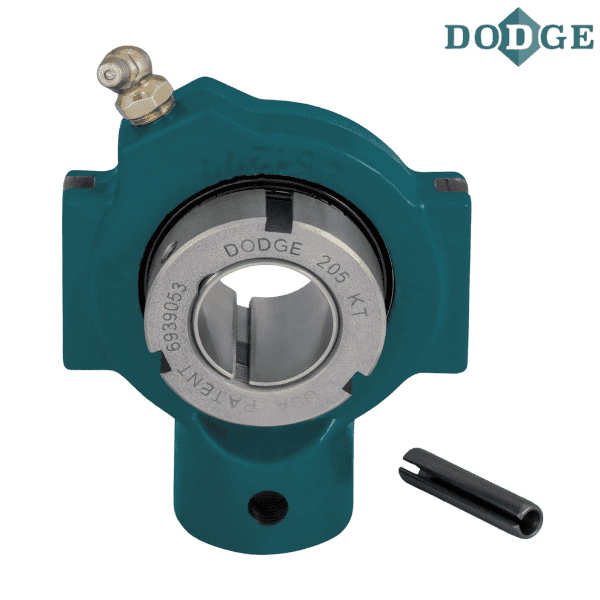

** Images are for representation purposes only
