136163 DODGE - NSTU-GTM-108

Brand - DODGE
Item Number - 136163 DODGE - NSTU-GTM-108
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Narrow Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.5
Description - NSTU-GTM-108
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136215
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136598
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-09-108-D
Weight (lbs) - 4.9
Take-Up Frame Size - NS400

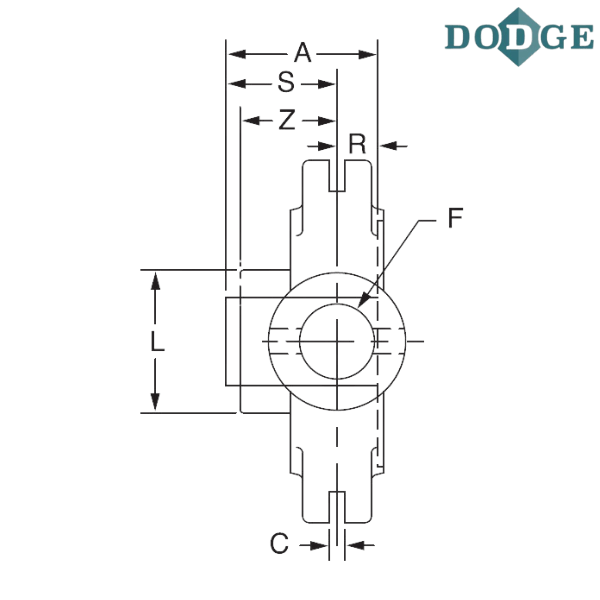

Length Through Bore (A) inch - 1.85

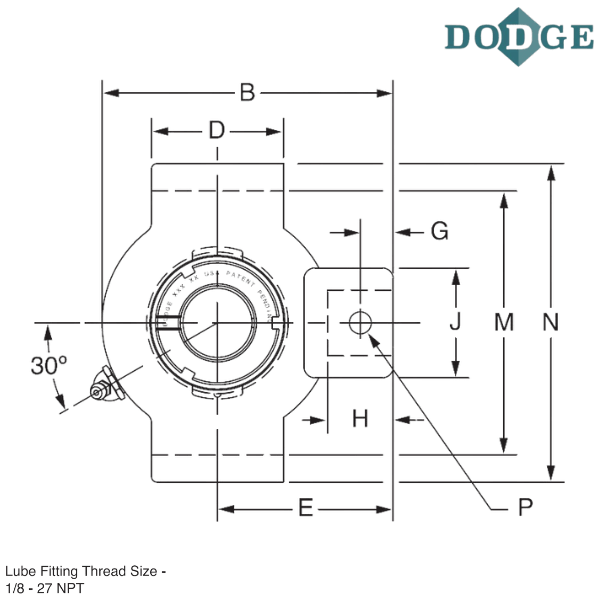

Overall Length (B) inch - 5.44
C (inch) - 0.313
D (inch) - 3
E (inch) - 3.25
F (Screw Diameter) inch - 0.875
G (inch) - 0.72
H (inch) - 1.22
J (inch) - 1.63
L (inch) - 2.86
M (inch) - 4.015/3.985
Overall Width (N) inch - 4.75
Pin Diameter (P) inch - 0.38
R (inch) - 0.62
S (inch) - 1.23
Z (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking

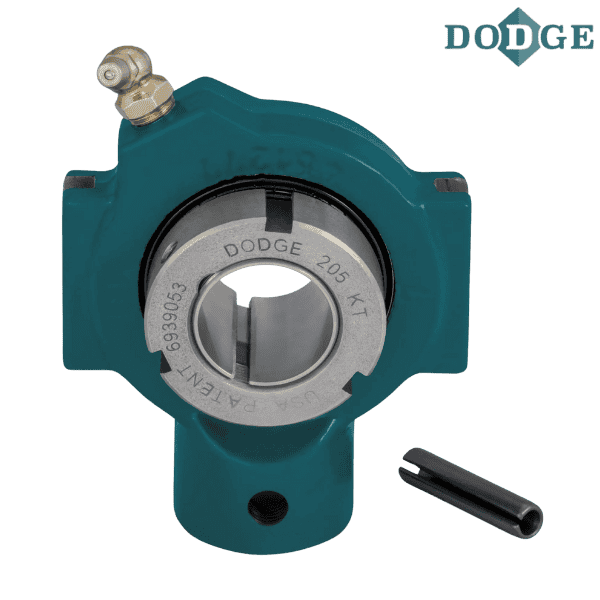

** Images are for representation purposes only
