136158 DODGE - TP-GT-215

Brand - DODGE
Item Number - 136158 DODGE - TP-GT-215
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Top Angle Take-Up Bearings)
Series - 215
Shaft Size (inch) - 2.9375
Description - TP-GT-215
Part Number (Unit without Adapter and Nut) - 136235
Description (Unit without Adapter and Nut) - TP-GT-15
Part Number (Adapter and Nut Assembly) - 136560
Description (Adapter and Nut Assembly) - AN-GT-15-215-D
Weight (lbs) - 22.4
Take-Up Frame Size - TP40

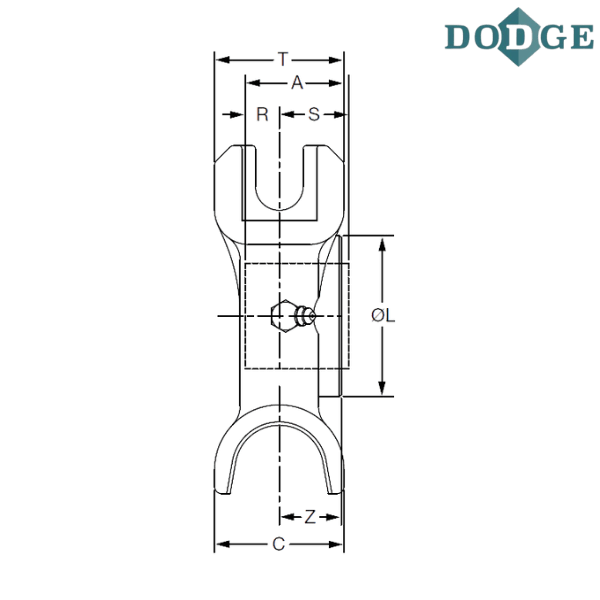

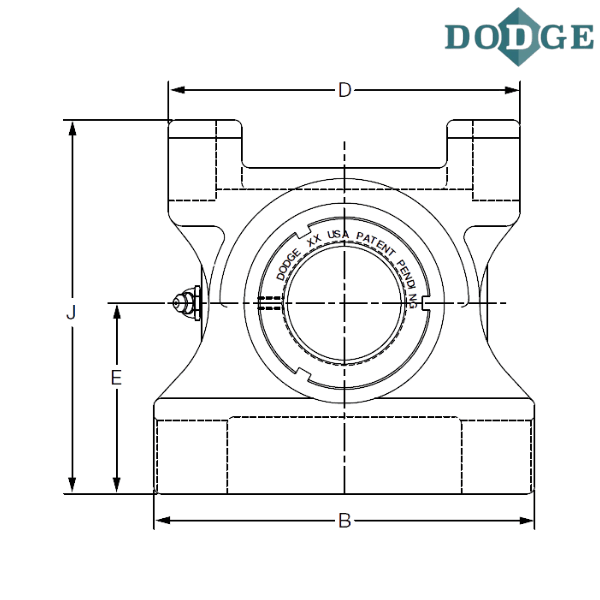

Length Through Bore (A) inch - 2.46
Overall Length (B) inch - 8.5
Thickness (C) inch - 2.5
D (inch) - 8
E (inch) - 4
Overall Width (J) inch - 8.31
L (inch) - 4.44
R (inch) - 0.95
S (inch) - 1.51
T (inch) - 2.75
Z (inch) - 1.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

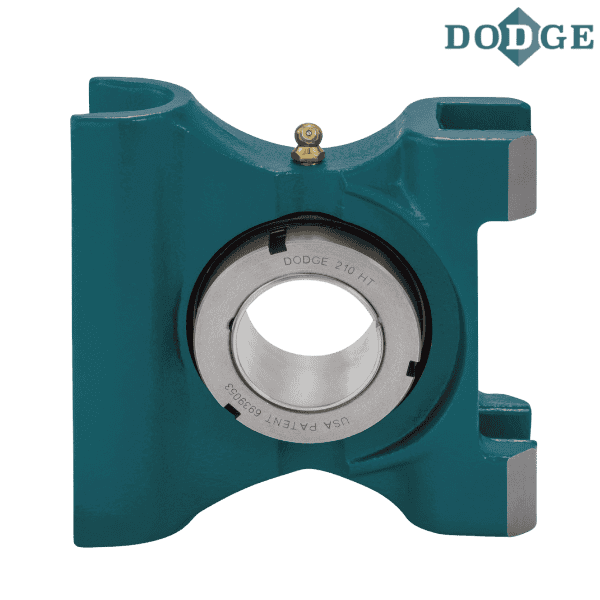

** Images are for representation purposes only
