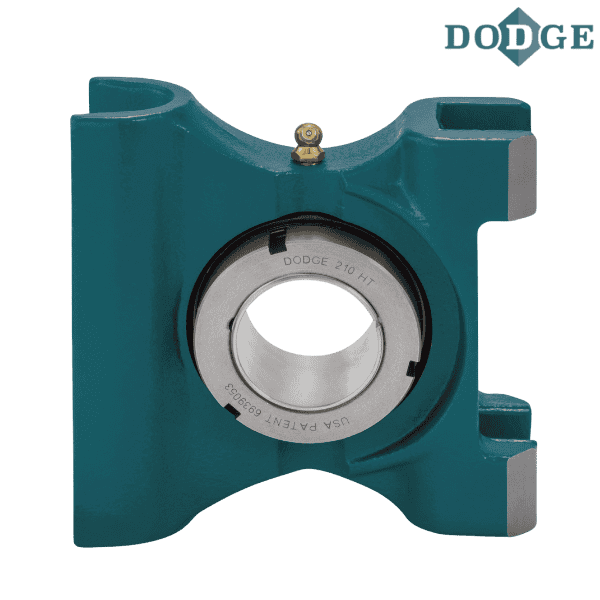

136157 DODGE - TP-GT-211

Brand - DODGE
Item Number - 136157 DODGE - TP-GT-211
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Top Angle Take-Up Bearings)
Series - 214
Shaft Size (inch) - 2.6875
Description - TP-GT-211
Part Number (Unit without Adapter and Nut) - 136234
Description (Unit without Adapter and Nut) - TP-GT-14
Part Number (Adapter and Nut Assembly) - 136548
Description (Adapter and Nut Assembly) - AN-GT-14-211-D
Weight (lbs) - 22.3
Take-Up Frame Size - TP40

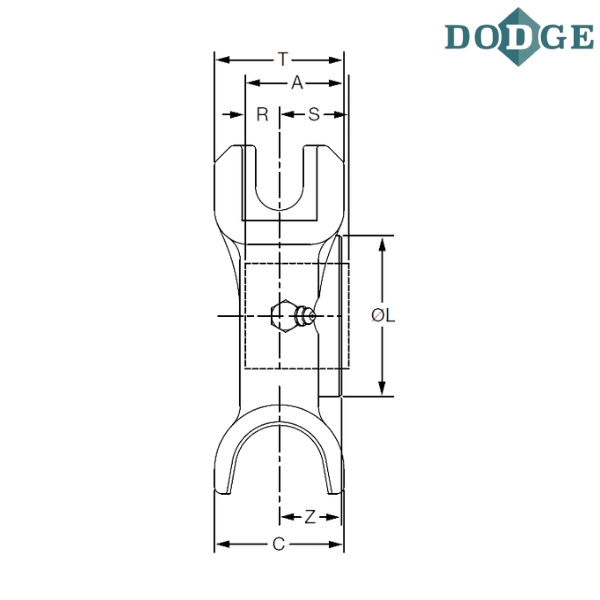

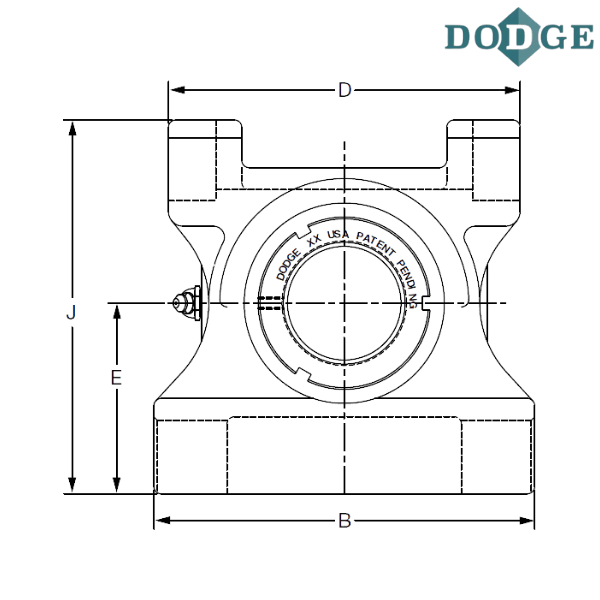

Length Through Bore (A) inch - 2.39
Overall Length (B) inch - 8.5
Thickness (C) inch - 2.5
D (inch) - 8
E (inch) - 4
Overall Width (J) inch - 8.31
L (inch) - 4
R (inch) - 0.94
S (inch) - 1.45
T (inch) - 2.75
Z (inch) - 1.58
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
