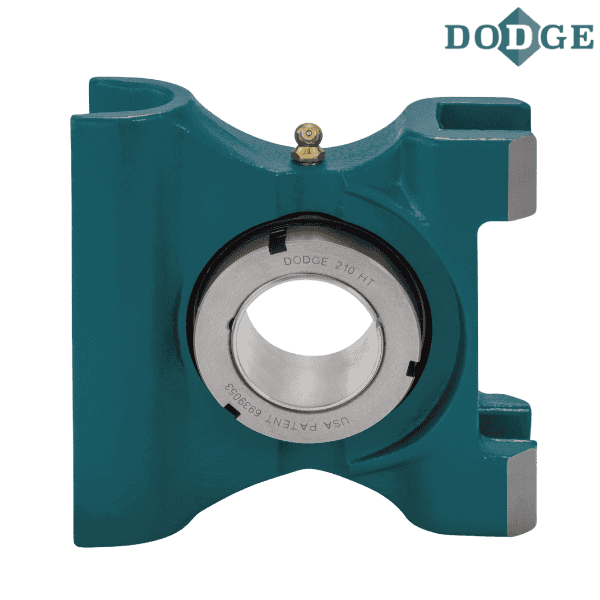

136156 DODGE - TP-GT-207

Brand - DODGE
Item Number - 136156 DODGE - TP-GT-207
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Top Angle Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.4375
Description - TP-GT-207
Part Number (Unit without Adapter and Nut) - 136233
Description (Unit without Adapter and Nut) - TP-GT-12
Part Number (Adapter and Nut Assembly) - 136538
Description (Adapter and Nut Assembly) - AN-GT-12-207-D
Weight (lbs) - 17.1
Take-Up Frame Size - TP30

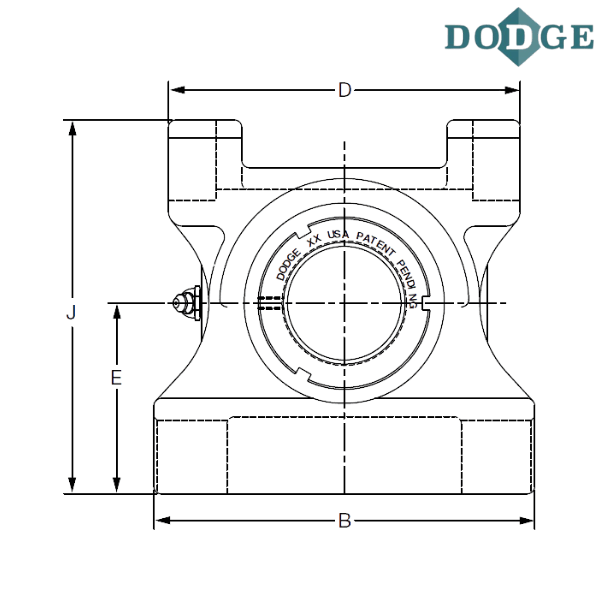

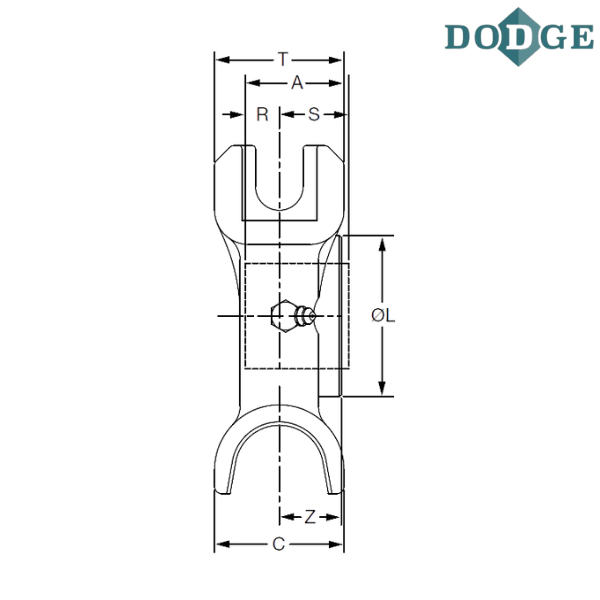

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 7.5
Thickness (C) inch - 2.75
D (inch) - 7
E (inch) - 3.5
Overall Width (J) inch - 7.44
L (inch) - 3.69
R (inch) - 0.73
S (inch) - 1.39
T (inch) - 2.75
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
