136155 DODGE - TP-GT-204

Brand - DODGE
Item Number - 136155 DODGE - TP-GT-204

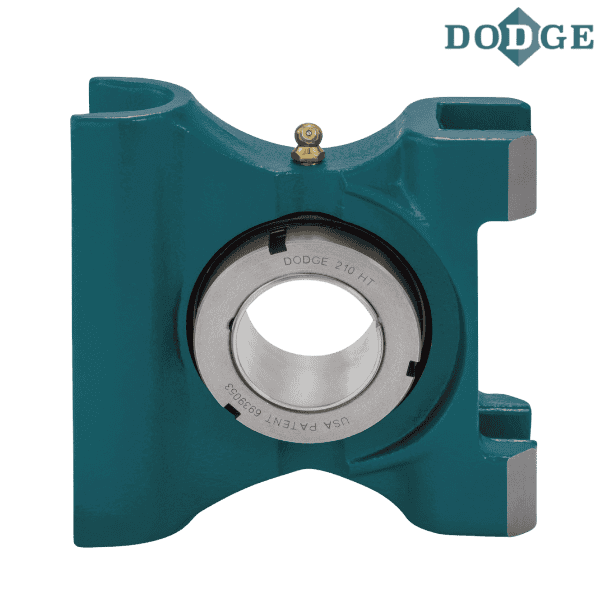

Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Top Angle Take-Up Bearings)
Series - 211
Shaft Size (inch) - 2.25
Description - TP-GT-204
Part Number (Unit without Adapter and Nut) - 136232
Description (Unit without Adapter and Nut) - TP-GT-11
Part Number (Adapter and Nut Assembly) - 136537
Description (Adapter and Nut Assembly) - AN-GT-11-204-D
Weight (lbs) - 13.2
Take-Up Frame Size - TP20

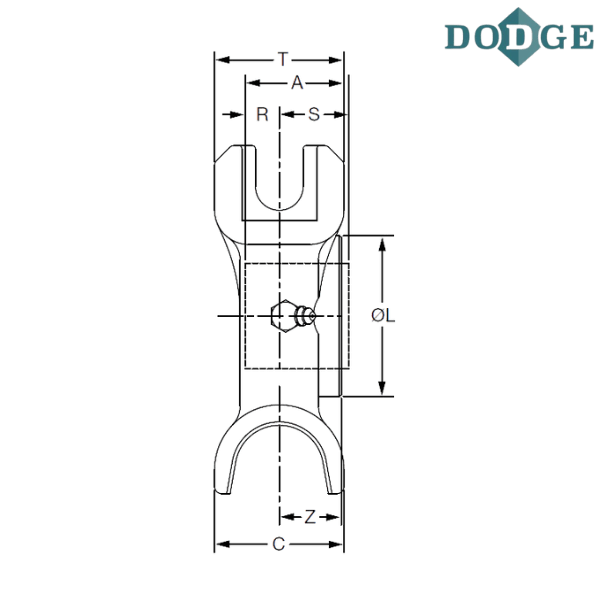

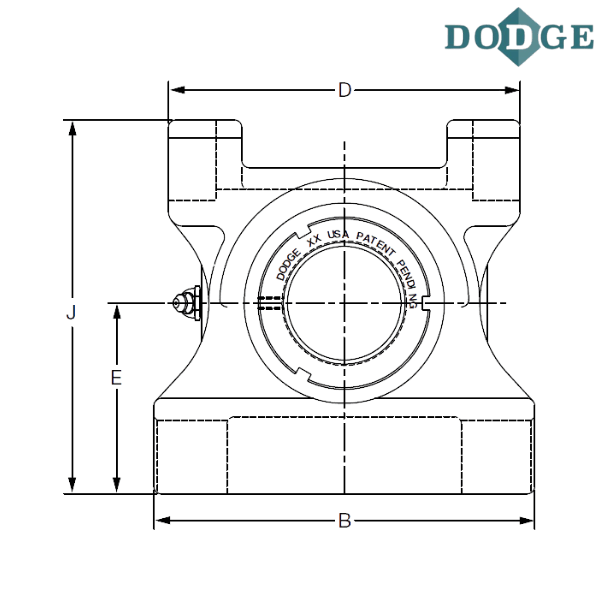

Length Through Bore (A) inch - 1.93
Overall Length (B) inch - 7
Thickness (C) inch - 2.5
D (inch) - 6.75
E (inch) - 3.38
Overall Width (J) inch - 7.88
L (inch) - 3.43
R (inch) - 0.67
S (inch) - 1.26
T (inch) - 2.38
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top angle take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
