136149 DODGE - WSTU-GT-207

Brand - DODGE
Item Number - 136149 DODGE - WSTU-GT-207
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.4375
Description - WSTU-GT-207
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136227
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136538
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-207-D
Weight (lbs) - 10.8
Take- Up Frame Size - WS502

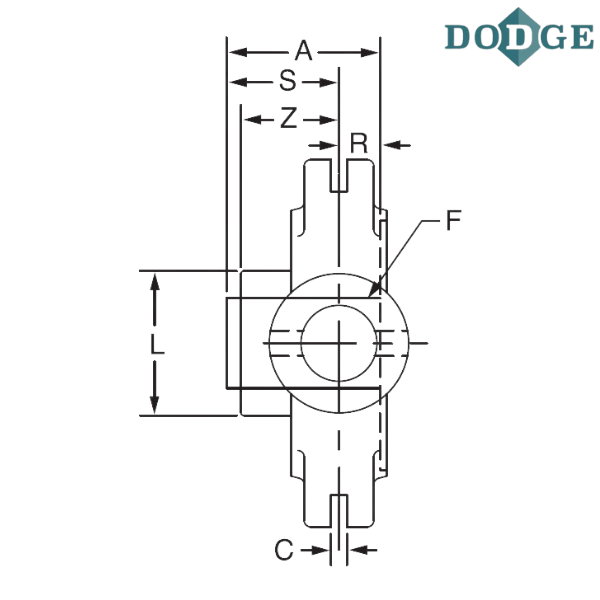

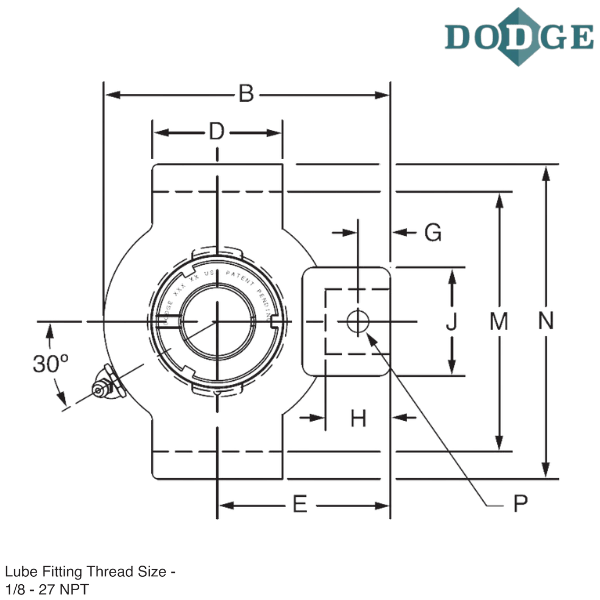

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 7.5
C (inch) - 1.063
D (inch) - 4
E (inch) - 4.69
F (Screw Diameter) inch - 1.25
G (inch) - 0.75
H (inch) - 1.25
J (inch) - 4
K (inch) - 2.5
L (inch) - 3.69
M (inch) - 5.110/5.140
Overall Width (N) inch - 5.88
R (inch) - 0.73
S (inch) - 1.39
Thickness (T) inch - 2.5
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

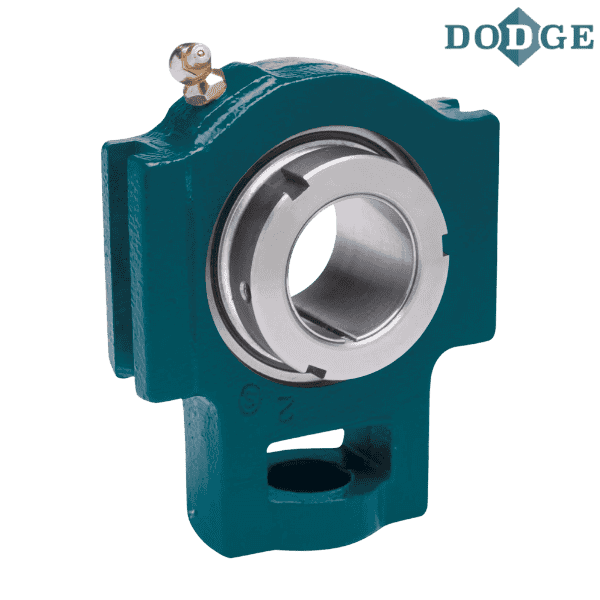

** Images are for representation purposes only
