136143 DODGE - WSTU-GT-111

Brand - DODGE
Item Number - 136143 DODGE - WSTU-GT-111
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.6875
Description - WSTU-GT-111
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136224
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136532
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-09-111-D
Weight (lbs) - 6
Take- Up Frame Size - WS400

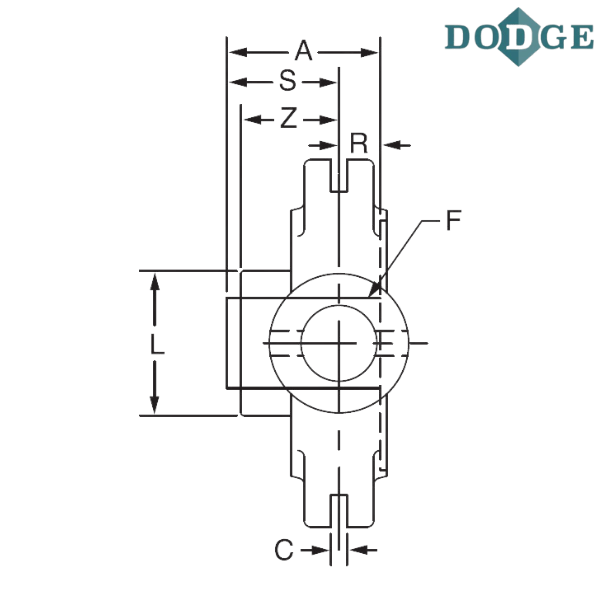

Length Through Bore (A) inch - 1.85

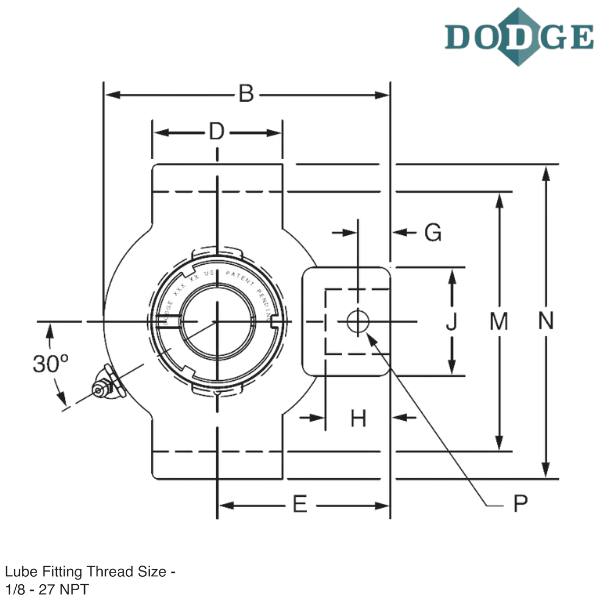

Overall Length (B) inch - 5.63
C (inch) - 0.688
D (inch) - 3.25
E (inch) - 3.44
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 2.86
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.75
R (inch) - 0.62
S (inch) - 1.23
Thickness (T) inch - 1.94
Z (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

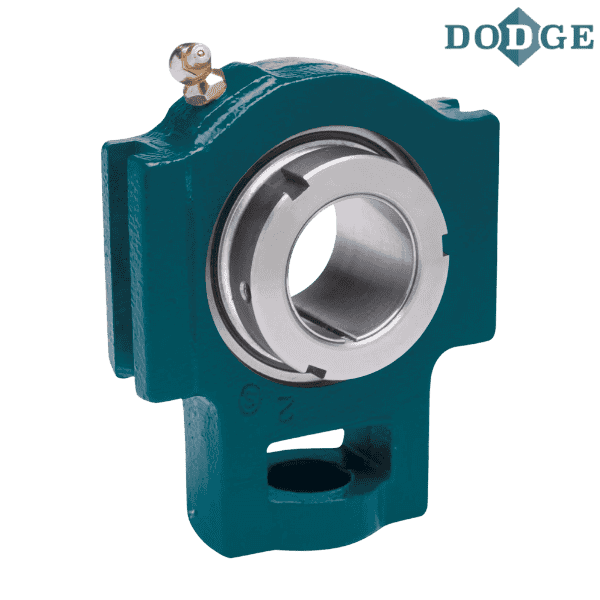

** Images are for representation purposes only
