136129 DODGE - NSTU-GT-207

Brand - DODGE
Item Number - 136129 DODGE - NSTU-GT-207
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.4375
Description - NSTU-GT-207
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136218
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136538
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-12-207-D
Weight (lbs) - 8.4
Take-Up Frame Size - NS415

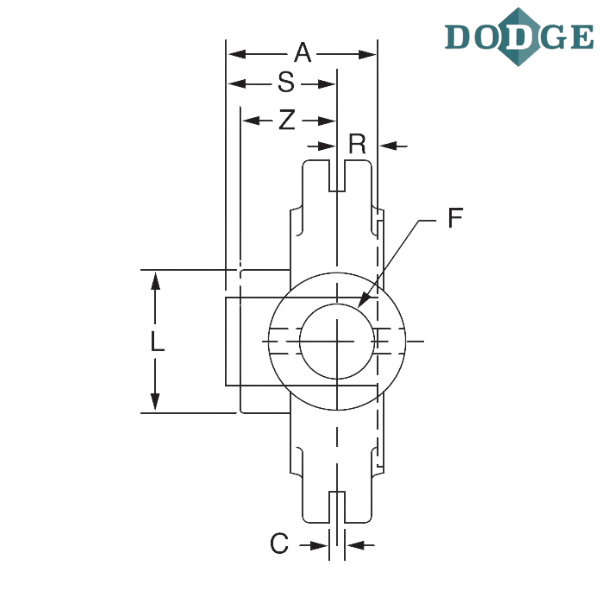

Length Through Bore (A) inch - 2.12

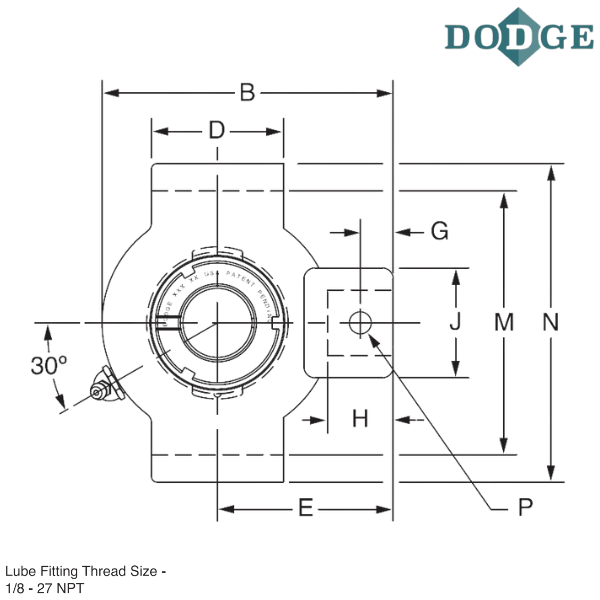

Overall Length (B) inch - 6.69
C (inch) - 0.313
D (inch) - 3.75
E (inch) - 3.88
F (Screw Diameter) inch - 1
G (inch) - 0.69
H (inch) - 1.28
J (inch) - 1.63
L (inch) - 3.69
M (inch) - 4.947/4.917
Overall Width (N) inch - 5.75
Pin Diameter (P) inch - 0.44
R (inch) - 0.73
S (inch) - 1.39
Z (inch) - 1.46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

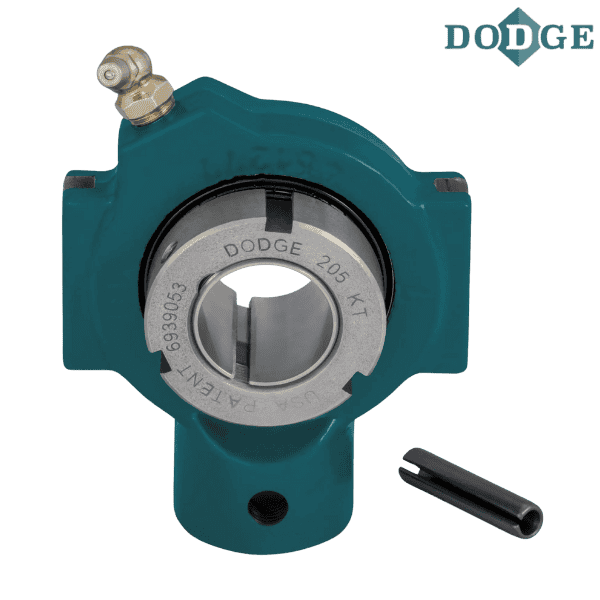

** Images are for representation purposes only
