136116 DODGE - NSTU-GT-104S

Brand - DODGE
Item Number - 136116 DODGE - NSTU-GT-104S
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - NSTU-GT-104S
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136212
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136527
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-104S-D
Weight (lbs) - 2.6
Take-Up Frame Size - NS308

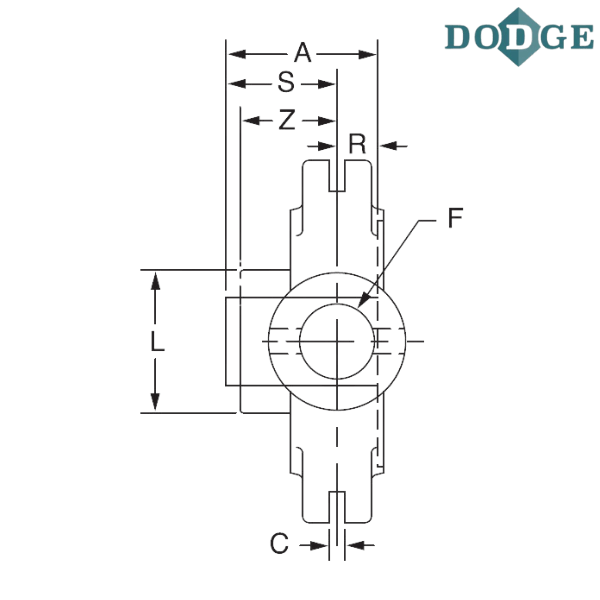

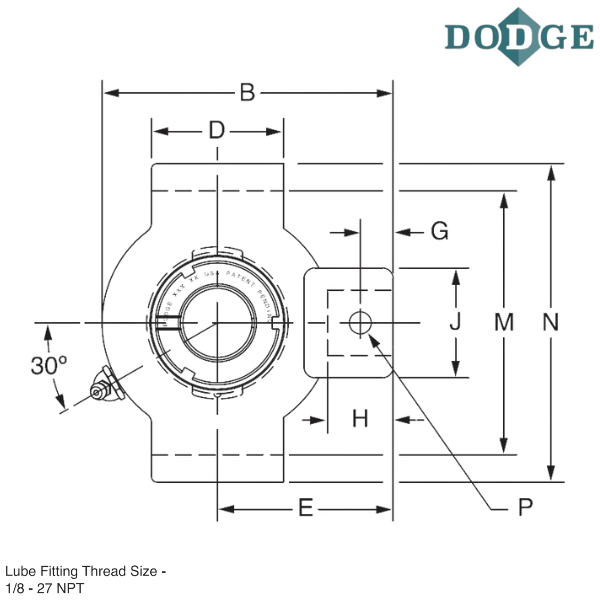

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 4.31
C (inch) - 0.25
D (inch) - 2.5
E (inch) - 2.69
F (Screw Diameter) inch - 0.75
G (inch) - 0.5
H (inch) - 0.94
J (inch) - 1.38
L (inch) - 2.08
M (inch) - 3.510/3.480
Overall Width (N) inch - 4.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.52
S (inch) - 1.09
Z (inch) - 1.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
S - Next smaller ring size

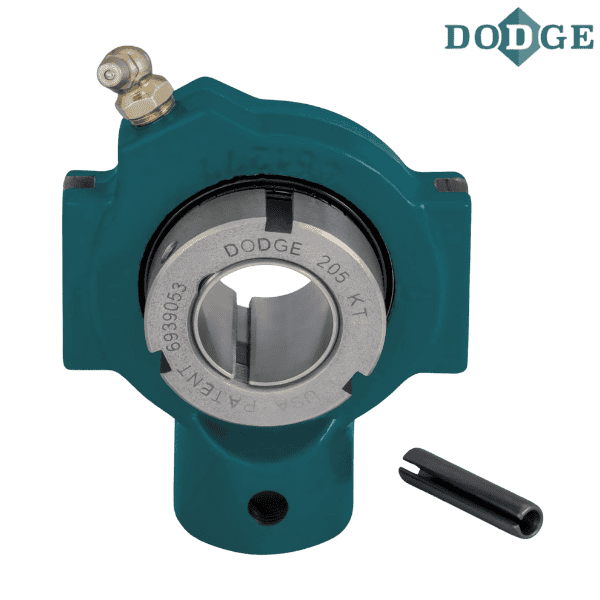

** Images are for representation purposes only
