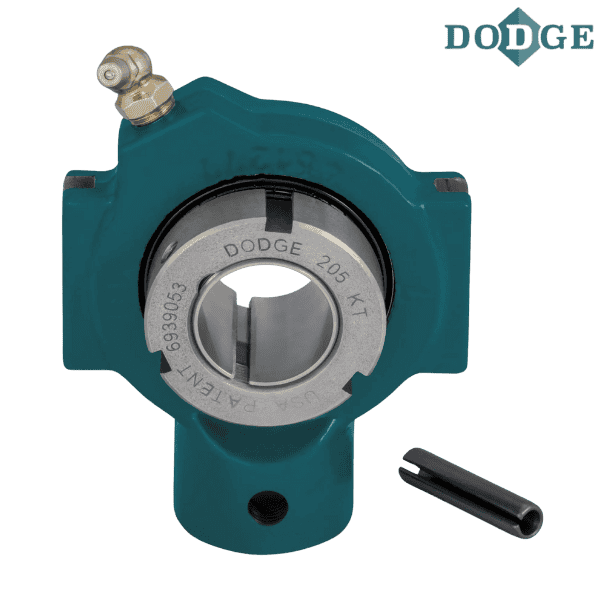

136111 DODGE - NSTU-GT-014

Brand - DODGE
Item Number - 136111 DODGE - NSTU-GT-014
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Narrow Slot Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - NSTU-GT-014
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136211
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136590
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-014-D
Weight (lbs) - 1.7
Take-Up Frame Size - NS210

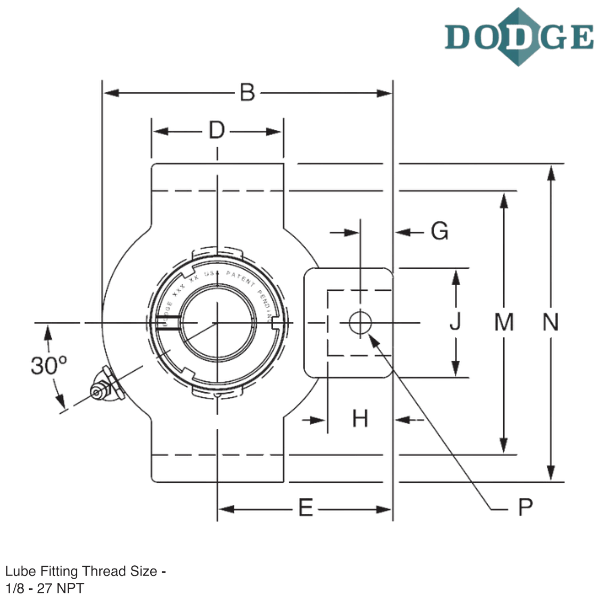

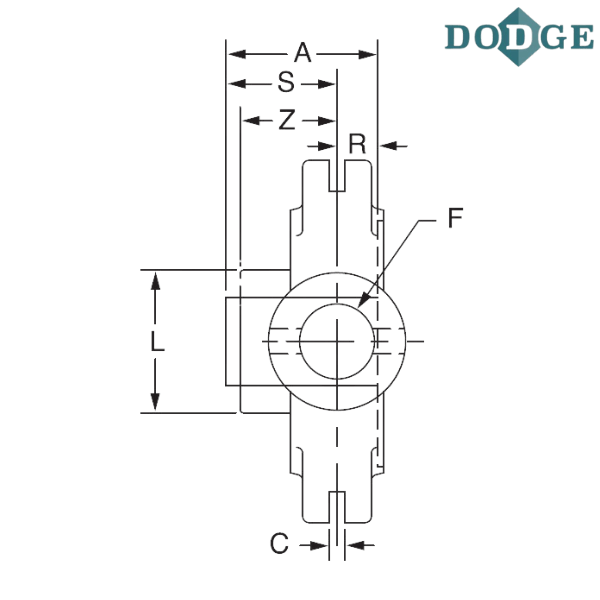

Length Through Bore (A) inch - 1.46
Overall Length (B) inch - 3.56
C (inch) - 0.25
D (inch) - 1.5
E (inch) - 2.19
F (Screw Diameter) inch - 0.75
G (inch) - 0.44
H (inch) - 0.88
J (inch) - 1.38
L (inch) - 1.8
M (inch) - 2.635/2.605
Overall Width (N) inch - 3.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.48
S (inch) - 0.98
Z (inch) - 1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
