Description
Brand - DODGE

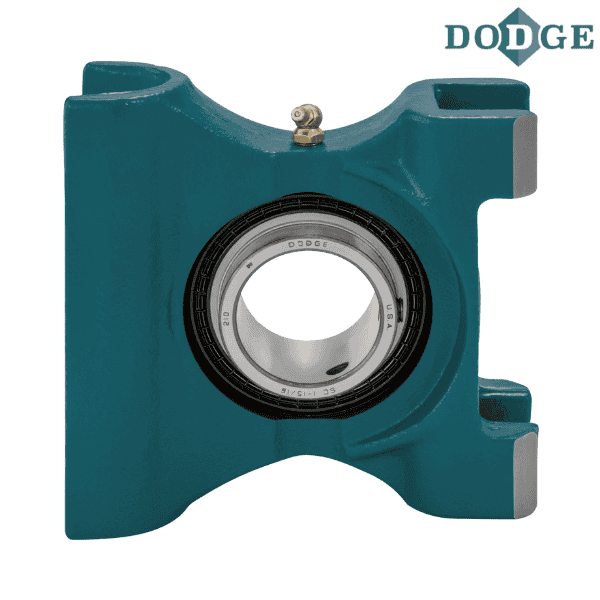

Item Number - 136082 DODGE - TP-GM-204
Category - Setscrew Ball Bearings (Type GM Medium Duty Top Angle Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - TP-GM-204
Weight (lbs) - 16.0
Frame Size - TP30

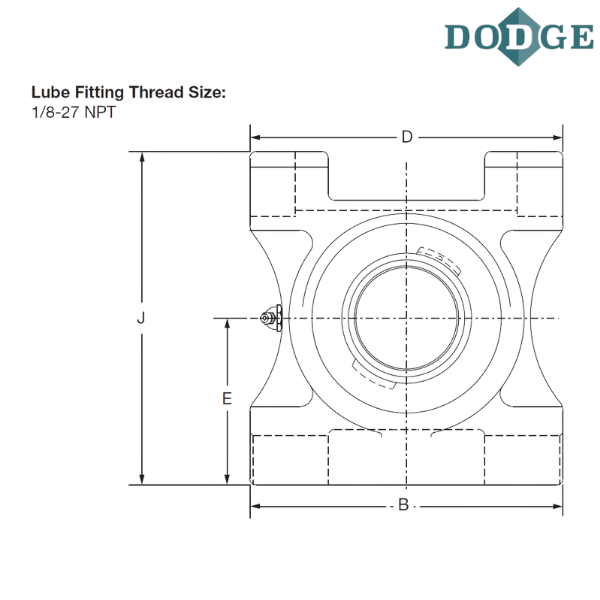

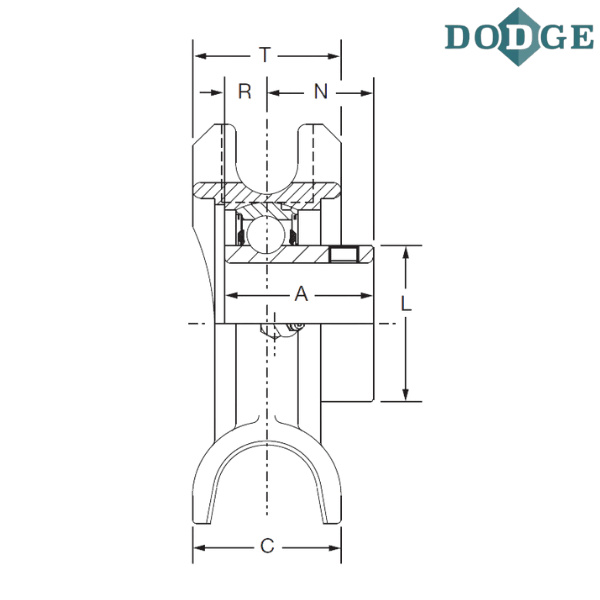

Length Through Bore (A) inch - 2.31
B (inch) - 7.50
C (inch) - 2.75
D (inch) - 7.00
E (inch) - 3.50
J (inch) - 7.44
L (inch) - 2.97
N (inch) - 1.41
R (inch) - 0.90
T (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up
** Images are for representation purposes only
