Description
Brand - DODGE
Item Number - 135172 DODGE - NSTU-SCM-204
Category - Setscrew Ball Bearings (SCM Medium Duty Narrow Slot Take-Up Bearings)
Series - 212
Shaft Size (inch) - 2.25
Description - NSTU-SCM-204
Weight (lbs) - 8.7
Take-Up Frame Number Reference - NS415

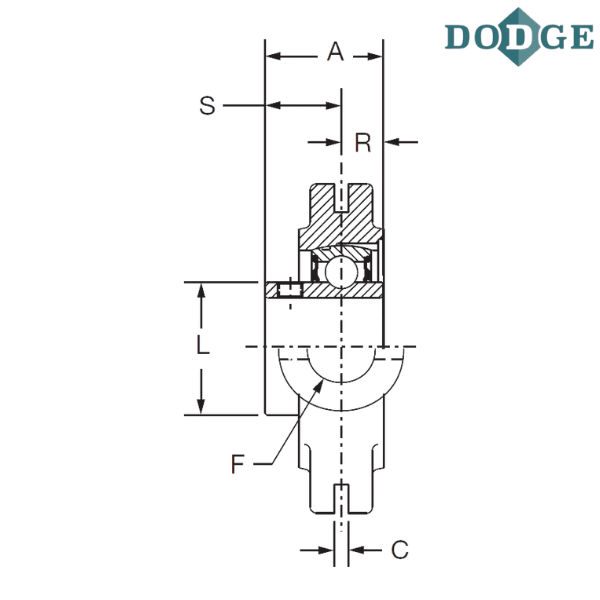

Length Through Bore (A) inch - 2.31

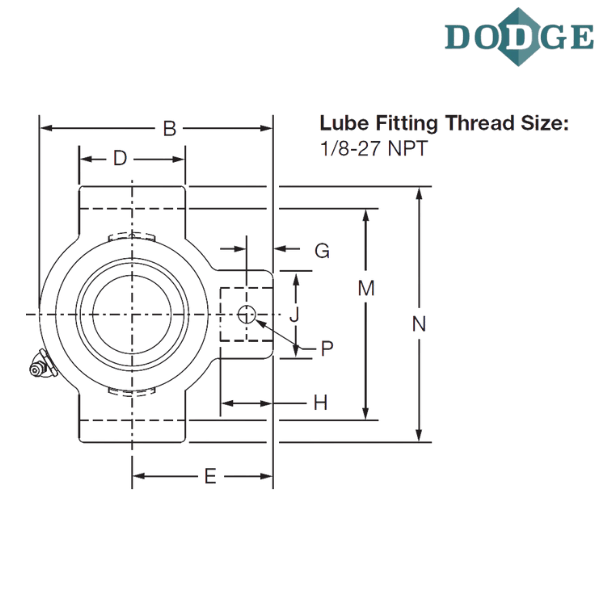

Overall Length (B) inch - 6.69
C (inch) - 0.313
D (inch) - 3.75
E (inch) - 3.88
F-Bolt Diameter (inch) - 1
G (inch) - 0.69
H (inch) - 1.28
J (inch) - 1.63
L (inch) - 2.97
M (inch) - 4.947/4.917
Overall Width (N) inch - 5.75
Pin Diameter (P) inch - 0.44
R (inch) - 0.9
S (inch) - 1.41
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking

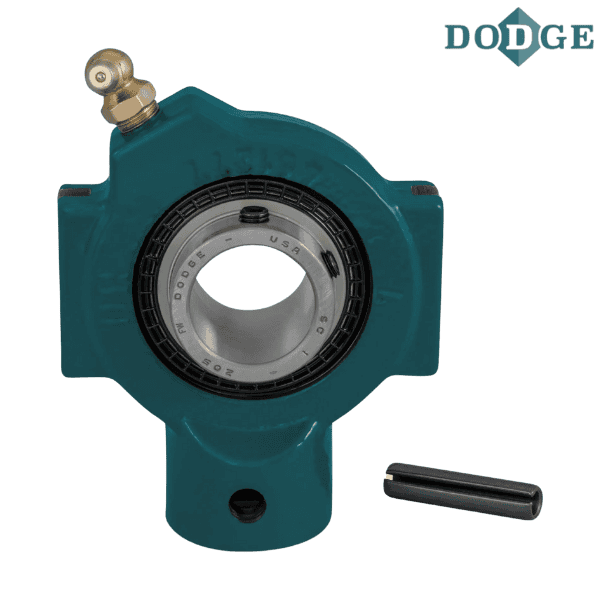

** Images are for representation purposes only
