Description
Brand - DODGE
Item Number - 135129 DODGE - WSTU-SCM-211
Category - Setscrew Ball Bearings (SCM Medium Duty Wide Slot Take-Up Bearings)
Series - 215
Shaft Size (inch) - 2.6875
Description - WSTU-SCM-211
Weight (lbs) - 19
Take-Up Frame Number Reference - WS515

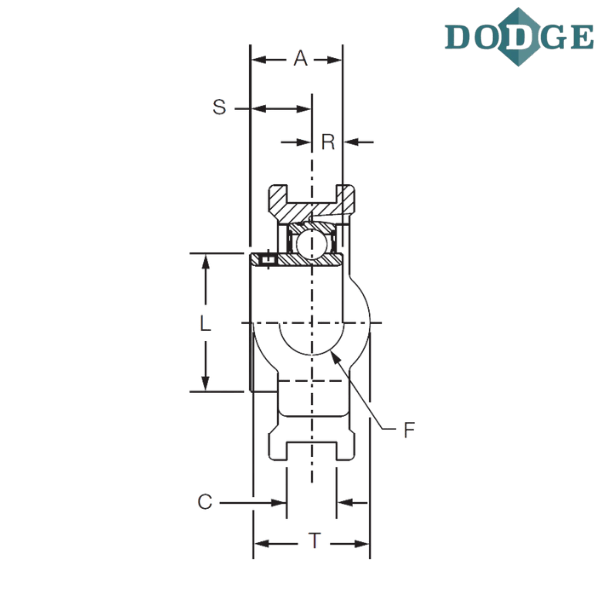

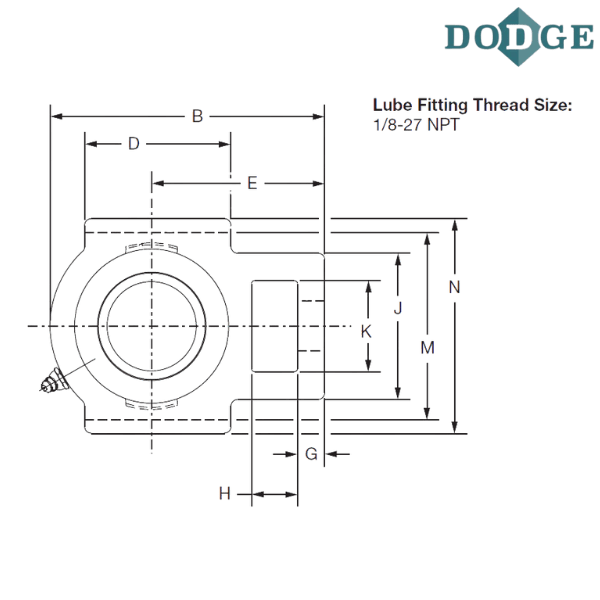

Length Through Bore (A) inch - 2.33
Overall Length (B) inch - 9.13
C (inch) - 1.063
D (inch) - 4.75
E (inch) - 5.5
F (Screw Diameter) inch - 1.5
G (inch) - 0.81
H (inch) - 1.25
J (inch) - 4.38
K (inch) - 2.75
L (inch) - 3.62
M (inch) - 5.923/5.953
N (inch) - 6.69
R (inch) - 0.86
S (inch) - 1.47
T (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking

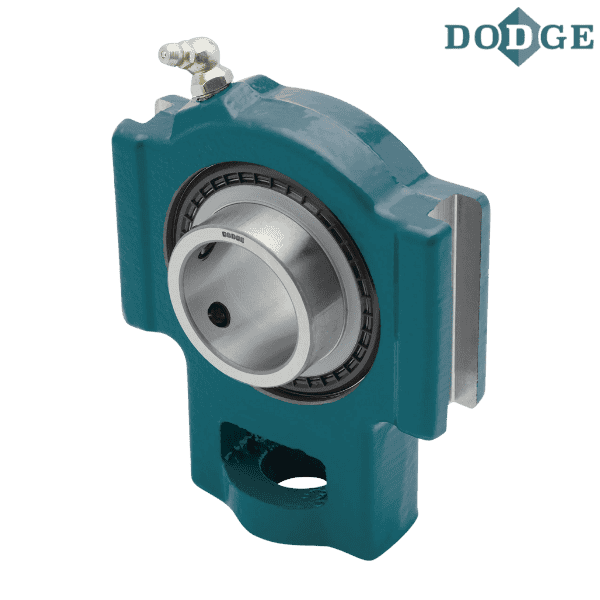

** Images are for representation purposes only
