135127 DODGE - WSTU-SCM-207


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 135127 DODGE - WSTU-SCM-207
Category - Setscrew Ball Bearings (SCM Medium Duty Wide Slot Take-Up Bearings)
Series - 214
Shaft Size (inch) - 2.4375
Description - WSTU-SCM-207
Weight (lbs) - 18.2
Take-Up Frame Number Reference - WS515
Length Through Bore (A) inch - 2.54

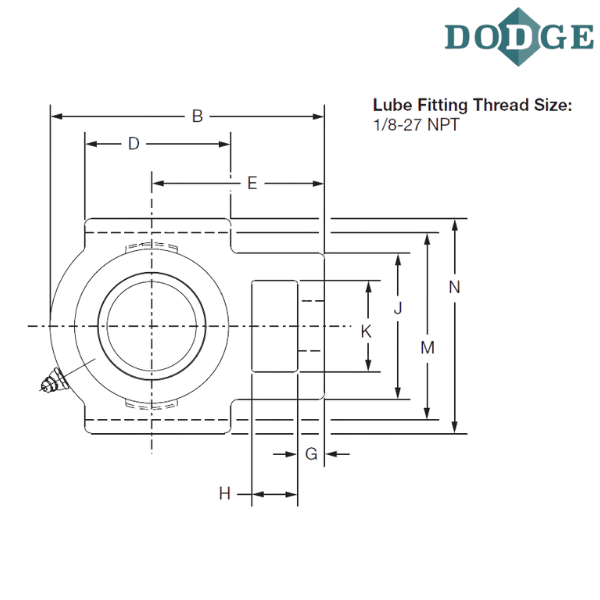

Overall Length (B) inch - 8.56
C (inch) - 1.063
D (inch) - 4.75
E (inch) - 5.38
F (Screw Diameter) inch - 1.5
G (inch) - 0.81
H (inch) - 1.25
J (inch) - 4.38
K (inch) - 2.75
L (inch) - 3.31
M (inch) - 5.923/5.953
N (inch) - 6.56
R (inch) - 1.06
S (inch) - 1.48
T (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking

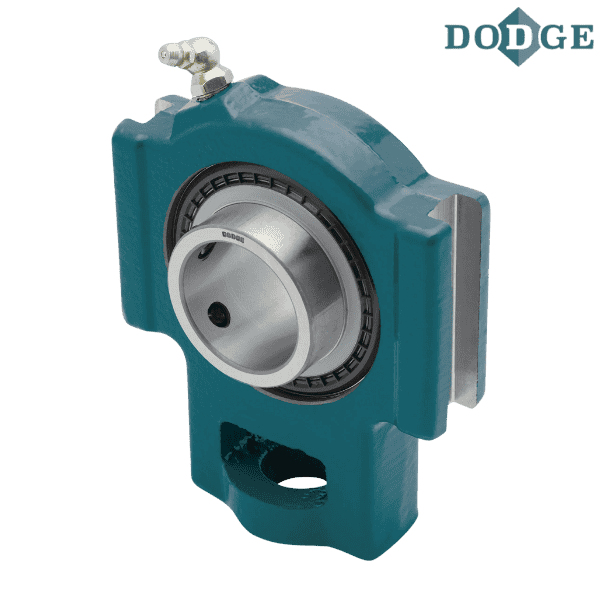

** Images are for representation purposes only
