Brand - DODGE
Item Number - 135117 DODGE - WSTU-SCM-100
Category - Setscrew Ball Bearings (SCM Medium Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1
Description - WSTU-SCM-100
Weight (lbs) - 2.9
Take-Up Frame Number Reference - WS308

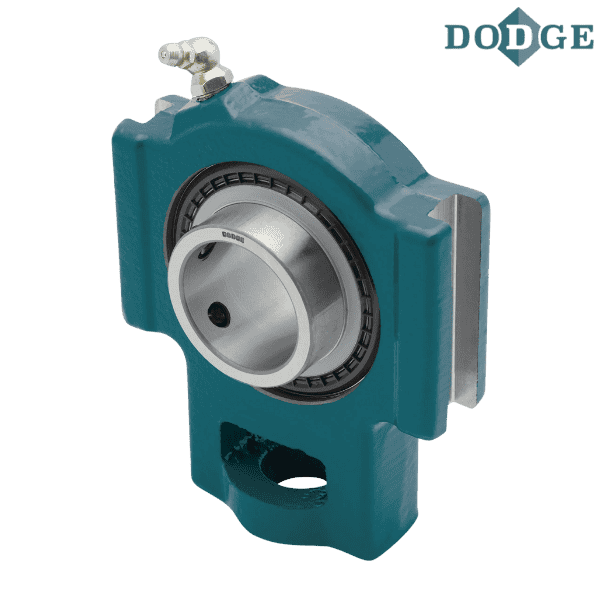

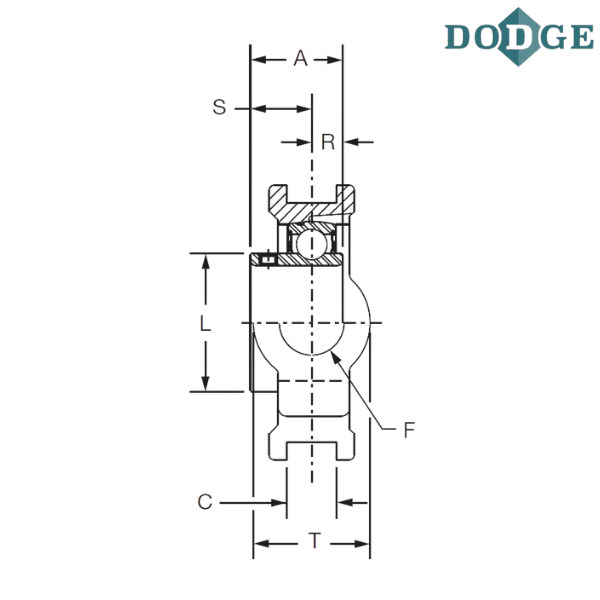

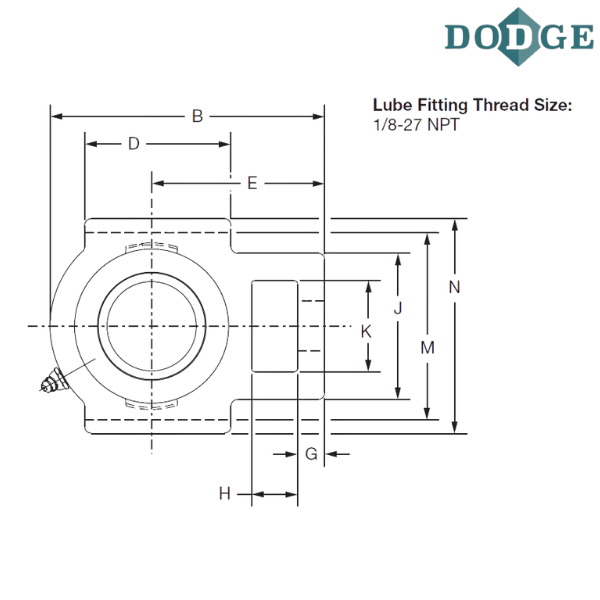

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 4.38
C (inch) - 0.531
D (inch) - 2.25
E (inch) - 2.75
F (Screw Diameter) inch - 0.75
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2.19
K (inch) - 1.44
L (inch) - 1.57
M (inch) - 3.480/3.510
N (inch) - 4.13
R (inch) - 0.58
S (inch) - 0.94
T (inch) - 1.63
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SCM - Wide inner ring, medium duty, 65° setscrew locking
