134505 DODGE - #10 RXT HOUSING ASSEMBLY

Brand - DODGE
Item Number - 134505 DODGE - #10 RXT HOUSING ASSEMBLY
Category - RXT Sleeveoil Pillow Block
Housing Part Number * - 134505
Housing Description - #10 RXT HOUSING ASSEMBLY
Category - RXT Sleeveoil Pillow Block
Size (inch) - 10
Compatible Shaft Sizes (inch) - 10, 12, 14
Weight of the Housing (lbs) - 2126
S Liner Part Numbers - 134720, 134721, 134779
T Liner Item Numbers ** - 134520 DODGE - 10 RXT-T LINER ASSEMBLY, 134521 DODGE - 12 RXT-T LINER ASSEMBLY
Weight of Liner (lbs) - 800
Split Thrust Collar Kit Item Numbers *** - 134890 DODGE - 10 RXT-S THRUST COLLAR KIT, 134891 DODGE - 12 RXT-S THRUST COLLAR KIT
Recessed Shaft Split Thrust Collar Kit Part Numbers **** - 432279, 432448
Split Seal Ring Item Numbers ***** - 134875 DODGE - #10 10 RXT SEAL KIT, 134876 DODGE - #10 12 RXT SEAL KIT, 134877 DODGE - #10 14 1/2 RXT SEAL KIT
Compatible Shaft Sizes (inch) - 10, 12, 14.5
Oil (Gal.) - 7.75

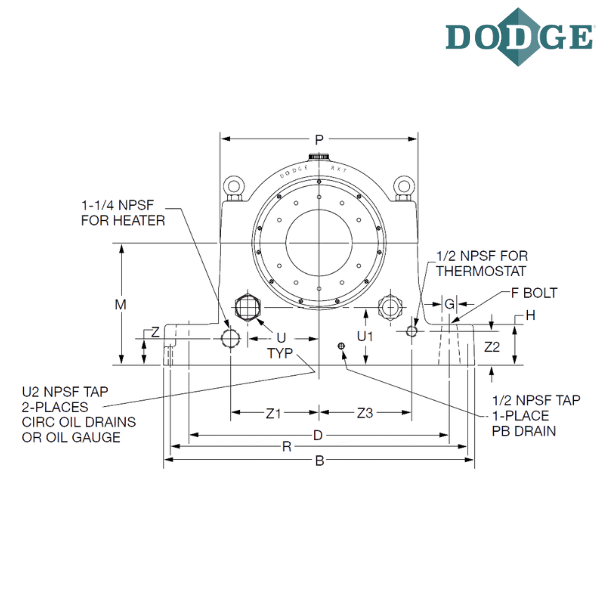

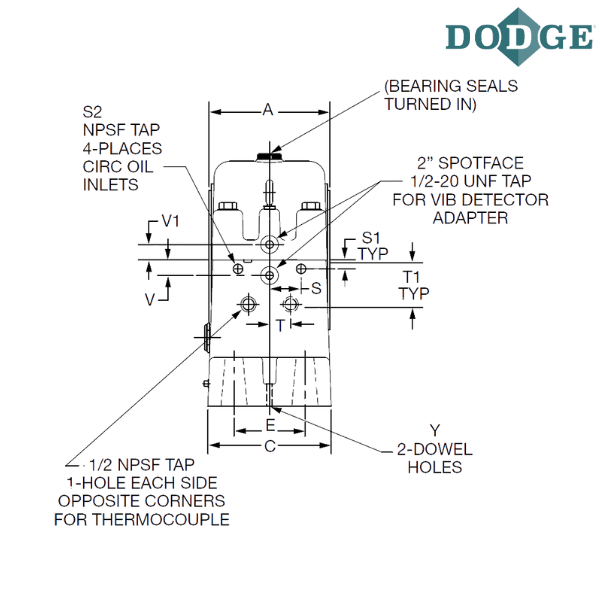

A (inch) - 17.25
Overall Length (B) inch - 49
C (inch) - 17.75
D (inch) - 42.75
E (inch) - 10
F-Bolt Diameter (inch) - 2
G (inch) - 3.125
H (inch) - 5.375

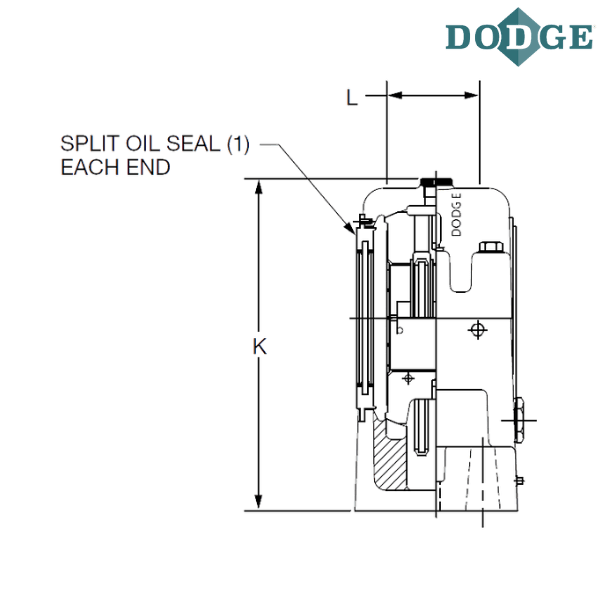

Overall Height (K) inch - 31.625
L (inch) - 11
Base to Center Height (M) inch - 17.75
P (inch) - 32
R (inch) - 44
S (inch) - 4.5625
S1 (inch) - 1.25
S2 (inch) - 1
T (inch) - 3
T1 (inch) - 6.5
U (inch) - 12
U1 (inch) - 7.625
U2 (inch) - 2.5
V (inch) - 2
Y (inch) - 0.71875
Z (inch) - 3
Z1 (inch) - 14
Z2 (inch) - 4.125
Z3 (inch) - 14.5

* Housings include oil ring(s), sight gauge, pipe plugs, and eye bolts
** When ordering the T liner, integral thrust collars are required
*** For use with S liner only. Back-up shoulders are required
**** For use with S liner only. Recessed shaft grooves are required
***** One seal required for each end of housing

****** Images are for representation purposes only
