134503 DODGE - #6 RXT HOUSING ASSEMBLY

Brand - DODGE
Item Number - 134503 DODGE - #6 RXT HOUSING ASSEMBLY
Category - RXT Sleeveoil Pillow Block
Housing Part Number * - 134503
Housing Description - #6 RXT HOUSING ASSEMBLY
Category - RXT Sleeveoil Pillow Block
Size (inch) - 6
Compatible Shaft Sizes (inch) - 6, 7
Weight of the Housing (lbs) - 740
S Liner Part Numbers - 134716, 134717
T Liner Item Numbers ** - 134516 DODGE - 6 RXT-T LINER ASSEMBLY, 134517 DODGE - 7 RXT-T LINER ASSEMBLY
Weight of Liner (lbs) - 195
Split Thrust Collar Kit Item Numbers *** - 134886 DODGE - 6 RXT-S THRUST COLLAR KIT, 134887 DODGE - 7 RXT-S THRUST COLLAR KIT
Recessed Shaft Split Thrust Collar Kit Part Numbers **** - 432276, 432277
Split Seal Ring Item Numbers ***** - 134869 DODGE - #6 6 RXT SEAL KIT, 134870 DODGE - #6 7 RXT SEAL KIT, 134871 DODGE - #6 10 RXT SEAL KIT
Compatible Shaft Sizes (inch) - 40365
Oil (Gal.) - 3.25

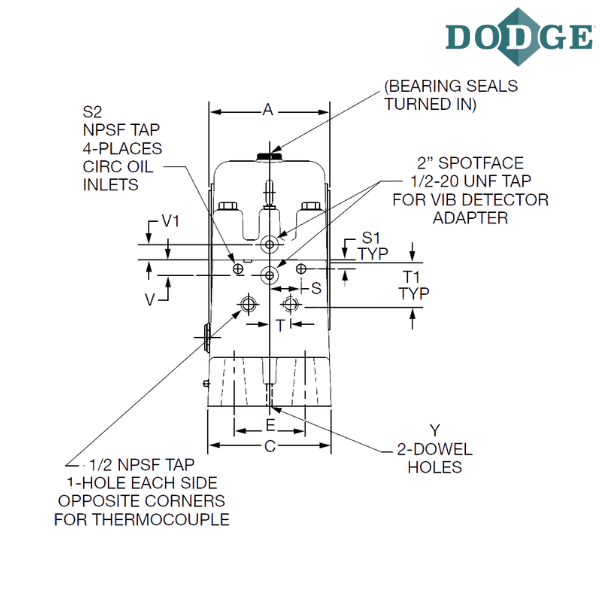

A (inch) - 12

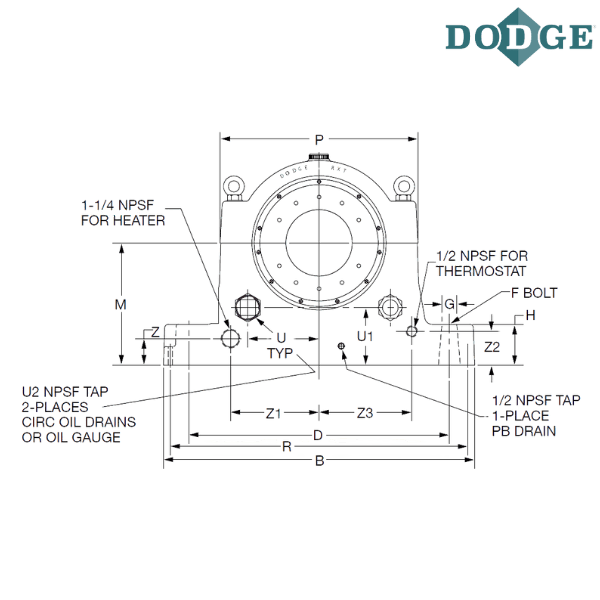

Overall Length (B) inch - 34.5
C (inch) - 12
D (inch) - 29.5
E (inch) - 6.5
F-Bolt Diameter (inch) - 1.5
G (inch) - 2.625
H (inch) - 4.5

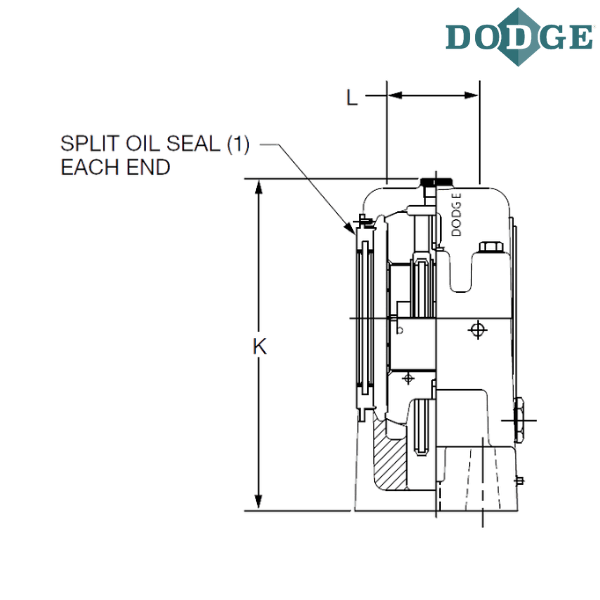

Overall Height (K) inch - 23.0625
L (inch) - 6.5
Base to Center Height (M) inch - 13.25
P (inch) - 21.5
R (inch) - 31.25
S (inch) - 2.875
S1 (inch) - 0.9375
S2 (inch) - 0.75
T (inch) - 2
T1 (inch) - 4
U (inch) - 8.25
U1 (inch) - 6
U2 (inch) - 2.5
V (inch) - 1.75
Y (inch) - 0.71875
Z (inch) - 2.125
Z1 (inch) - 5.25
Z2 (inch) - 3.25
Z3 (inch) - 9.25

* Housings include oil ring(s), sight gauge, pipe plugs, and eye bolts
** When ordering the T liner, integral thrust collars are required
*** For use with S liner only. Back-up shoulders are required
**** For use with S liner only. Recessed shaft grooves are required
***** One seal required for each end of housing

****** Images are for representation purposes only
